We are pleased to introduce "Orione Hydropower" as one of the reputed brands that deal in hydraulic tools and equipment such as high-pressure hydraulic jacks, nut splitters, hydraulic power packs, hydraulic pullers, bolt tensioners, and many more.

Contact Info

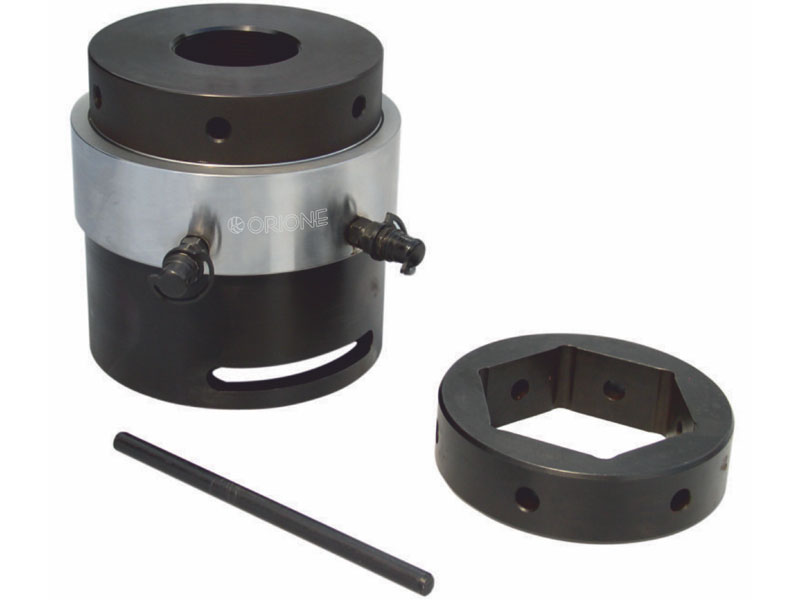

Stud Bolt Tensioners

Stud Bolt Tensioners

Stud Bolt Tensioners

Stud Bolt Tensioners

Stud Bolt Tensioners

Stud Bolt Tensioners

Stud Bolt Tensioners


Wide Thread Range: M6-M100 (¼"-4") | High-Pressure Capability Up to 1500 Bar

Features / Application :

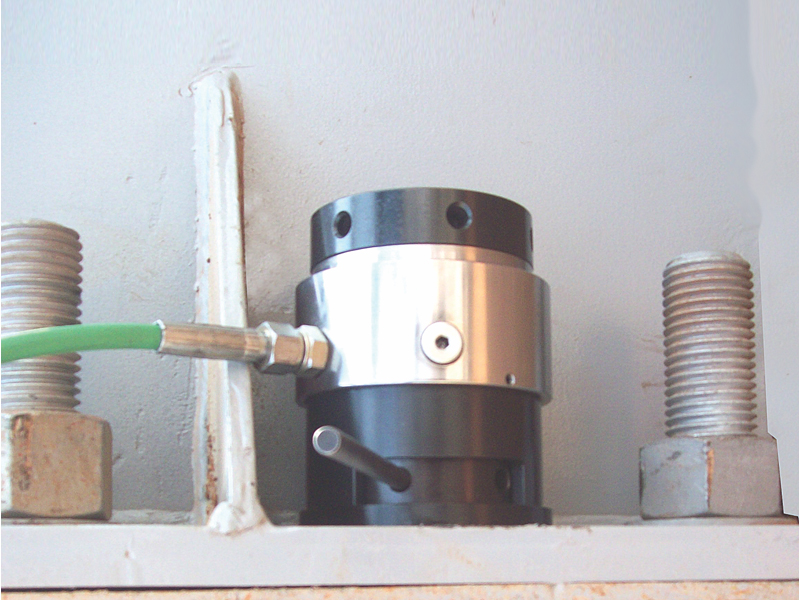

  • Ideal for pre-loading and de-tensioning bolts and studs on flanged connections of pressure vessels, boiler feed pumps, compressor covers, heat exchangers, and pipelines requiring uniform and precise load distribution
  • Ensures uniform joint loading, especially beneficial for high-integrity applications
  • Widely used in steel, cement, power generation, process plants, oil & gas, and heavy engineering industries
  • Compatible with standard flange dimensions, offering flexible and reliable operation

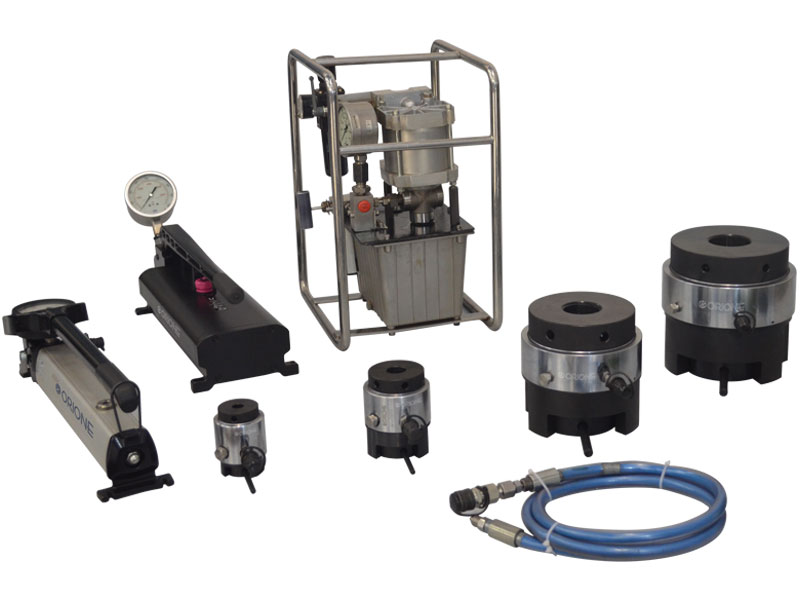

  • Pumping units and accessories sourced from reputed global brands for assured quality and performance

Model
(metric)		 Bolt / Stud Size
(metric)		 Model�
(imperial)		 Bolt / Stud Size
(imperial)		 Capacity
(ton)		 Capacity
(kN)		 Stroke
(mm)		 Effective area
(cm2)		 Wt. (Approx.)
(kg)
OBT 15-24-16 M16 - - 24 113 10 16.2 1.5
OBT 15-24-18 M18 OBT 15-24-075 3/4" 24 113 10 16.2 1.5
OBT 15-24-20 M20 - - 24 113 10 16.2 1.5
OBT 15-24-22 M22 OBT 15-24-087 7/8" 24 113 10 16.2 1.5
OBT 15-24-24 M24 OBT 15-24-100 1" 24 113 10 16.2 1.5
OBT 15-24-27 M27 OBT 15-24-112 1 1/8" 24 113 10 16.2 1.5
OBT 15-50-30 M30 - - 50 227 15 32.4 2.5
OBT 15-50-33 M33 OBT 15-50-125 1 1/4" 50 227 15 32.4 2.5
OBT 15-50-36 M36 OBT 15-50-137 1 3/8" 50 227 15 32.4 2.5
OBT 15-50-39 M39 OBT 15-50-150 1 1/2" 50 227 15 32.4 2.5
OBT 15-90-42 M42 OBT 15-90-162 1 5/8" 90 418 15 59.7 4.2
OBT 15-90-45 M45 OBT 15-90-187 1 7/8" 90 418 15 59.7 4.2
OBT 15-90-48 M48 OBT 15-90-187 1 7/8" 90 418 15 59.7 4.2
OBT 15-90-52 M52 OBT 15-90-200 2" 90 418 15 59.7 4.2
OBT 15-125-48 M48 OBT 15-125-187 1 7/8" 125 581 15 83 6.4
OBT 15-125-52 M52 OBT 15-125-200 2" 125 581 15 83 6.4
OBT 15-125-56 M56 OBT 15-125-225 2 1/4" 125 581 15 83 6.4
OBT 15-125-60 M60 - - 125 581 15 83 6.4
OBT 15-125-64 M64 OBT 15-125-250 2 1/2" 125 581 15 83 6.4
OBT 15-185-64 M64 OBT 15-185-250 2 1/2" 185 861 15 123 9
OBT 15-185-68 M68 - - 185 861 15 123 9
OBT 15-185-72 M72 OBT 15-185-275 2 3/4" 185 861 15 123 9
OBT 15-185-76 M76 OBT 15-185-300 3" 185 861 15 123 9
OBT 15-265-76 M76 OBT 15-265-300 3" 265 1232 15 176 15.3
OBT 15-265-80 M80 - - 265 1232 15 176 15.3
OBT 15-265-85 M85 OBT 15-265-325 3 1/4" 265 1232 15 176 15.3
OBT 15-265-90 M90 OBT 15-265-350 3 1/2" 265 1232 15 176 15.3
OBT 15-265-95 M95 OBT 15-265-375 3 3/4" 265 1232 15 176 15.3
OBT 15-265-100 M100 OBT 15-265-400 4" 265 1232 15 176 15.3
- - OBT 15-385-375 3 3/4" 385 1751 15 250.2 31.7
OBT 15-385-100 100 - - 385 1751 15 250.2 31.7
- - OBT 15-385-400 4 385 1751 15 250.2 31.7
- - OBT 15-385-425 4 1/4" 385 1751 15 250.2 31.7
OBT 15-385-110 110 - - 385 1751 15 250.2 31.7
- - OBT 15-385-450 4 1/2" 385 1751 15 250.2 31.7
OBT 15-385-120 120 - - 385 1751 15 250.2 31.7
- - OBT 15-385-475 4 3/4" 385 1751 15 250.2 31.7
OBT 15-385-125 125 - - 385 1751 15 250.2 31.7
OBT 15-485-125 125 - - 485 2218 15 316.9 43.5
- - OBT 15-485-500 5 485 2218 15 316.9 43.5
OBT 15-485-130 130 - - 485 2218 15 316.9 43.5
- - OBT 15-485-525 5 1/4" 485 2218 15 316.9 43.5
- - OBT 15-485-550 5 1/2" 485 2218 15 316.9 43.5
OBT 15-485-140 140 - - 485 2218 15 316.9 43.5
- - OBT 15-485-575 5 3/4" 485 2218 15 316.9 43.5
OBT 15-485-150 150 - - 485 2218 15 316.9 43.5
