Heavy Duty Cylinders

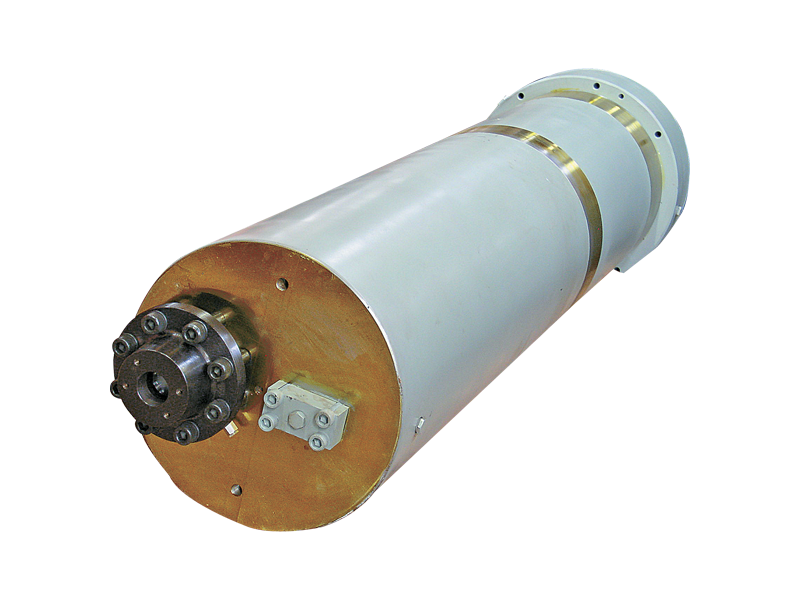

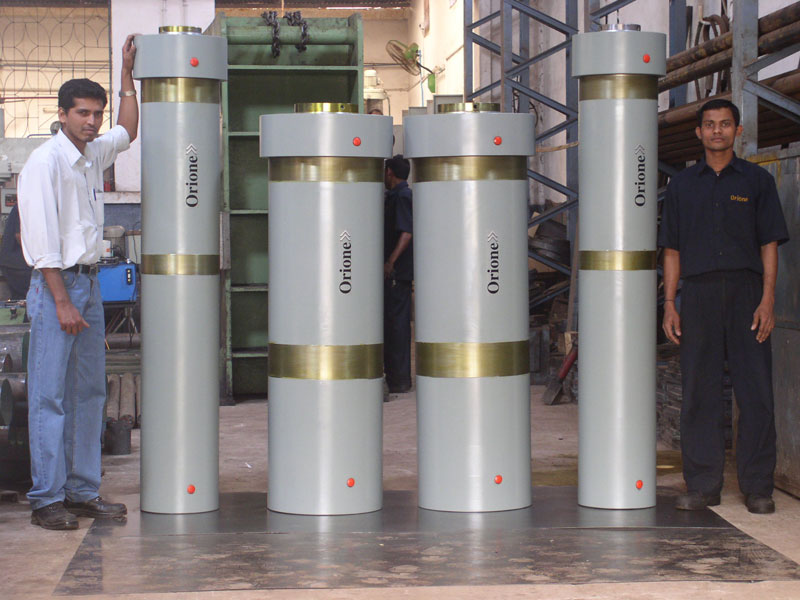

Heavy Duty with Pre-fill exhaust valve
Pressure 100 - 400 bar
Application:
- Reliable Design: Orione hydraulic cylinders are precision engineered for consistent, trouble-free performance across demanding industrial applications.
- Cylinder Tube: Manufactured from St 52 / ASTM A103 steel, and machined and honed for smooth, efficient operation and long service life.
- Piston Rod: Made from C45 carbon steel, precisely machined, ground, and hard chrome plated with a 50-micron coating for enhanced durability and corrosion resistance.
- Gland Bush: Constructed using Phosphor Bronze (IS:28 ingot grade) for superior strength and wear resistance.
- Sealing System: Equipped with polyurethane seals and glyd rings to ensure optimal sealing performance and prevent fluid leakage under high-pressure conditions.
Plain Rear Clevis, Threaded Ram End
Front Flange mounted, Steel mill duty
Double Acting, Front Flange Mounted

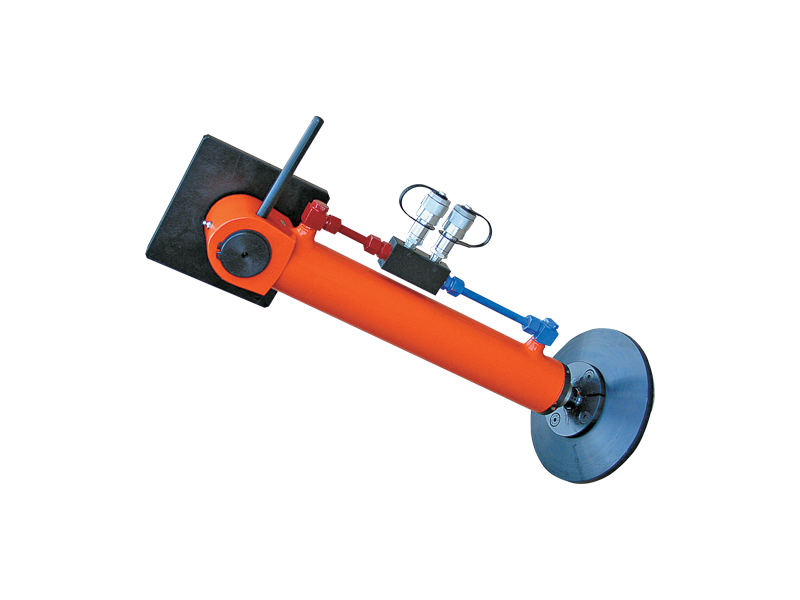

Outrigger Cylinder

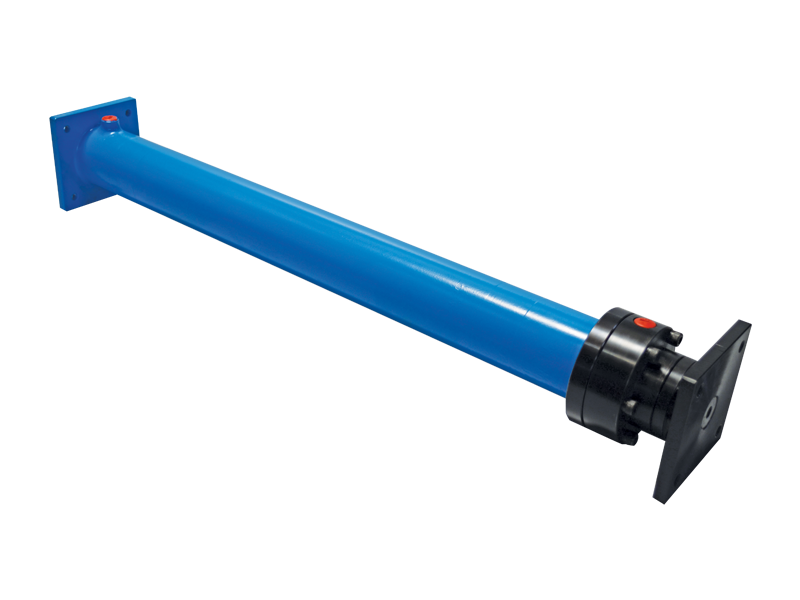

Both end Flange mounted, Steel mill duty
Low Pressure Cylinders

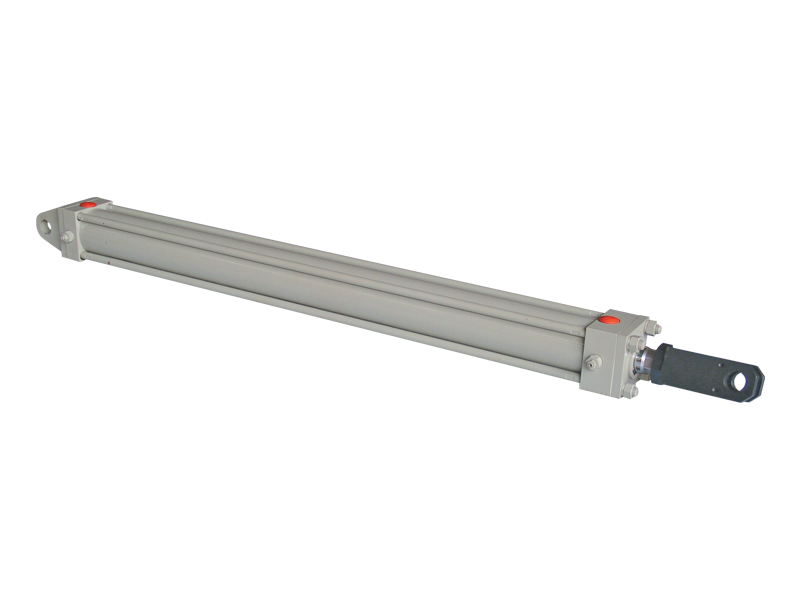

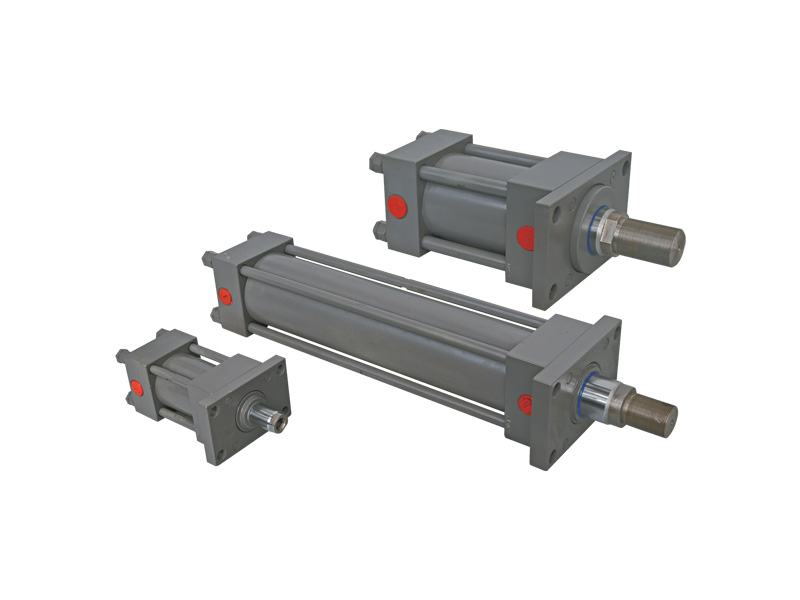

Tie Rod Construction With Cushioning

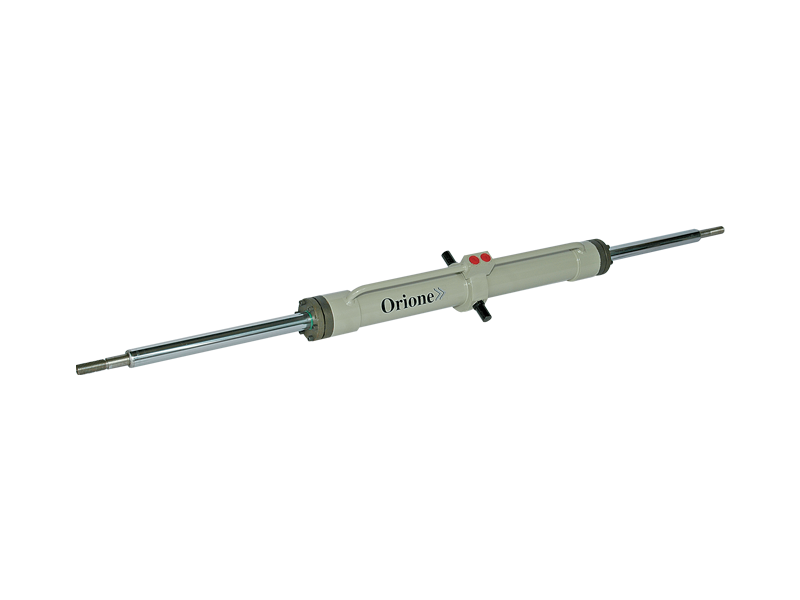

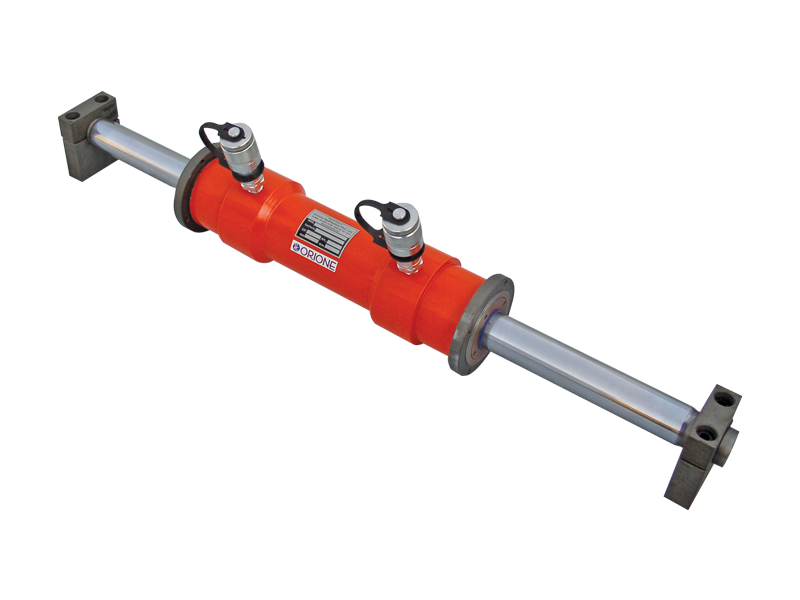

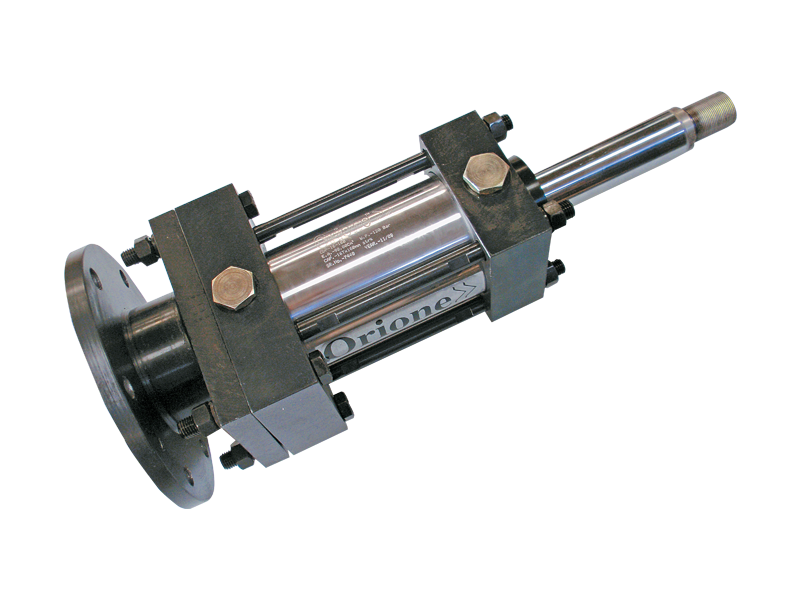

Double Ended with Bottom Flange
Ram End Mounting

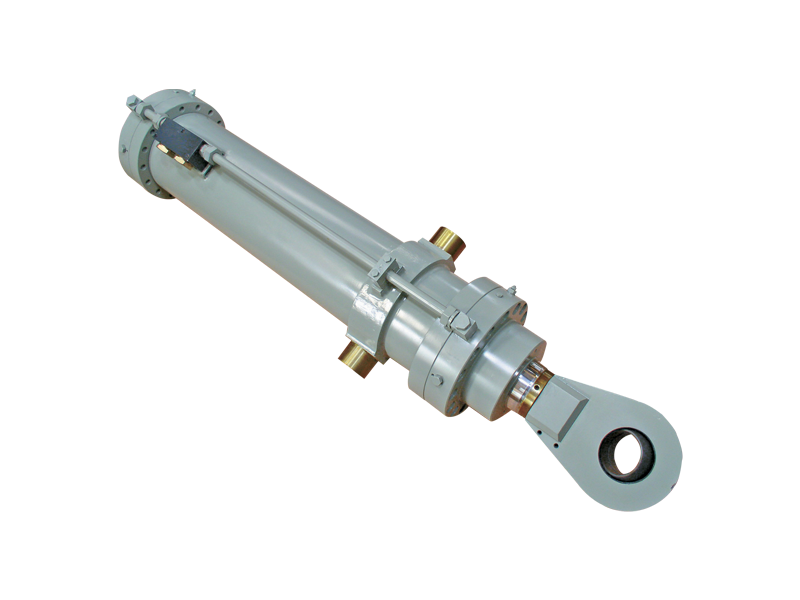

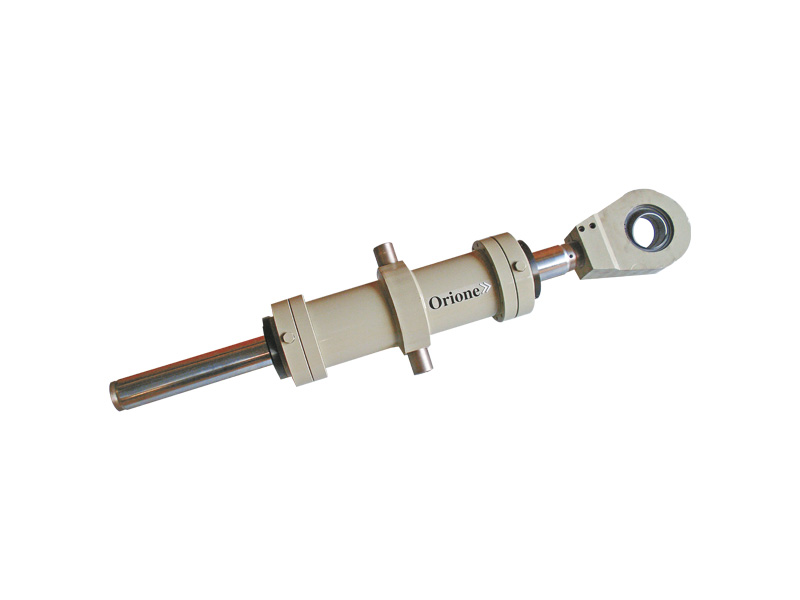

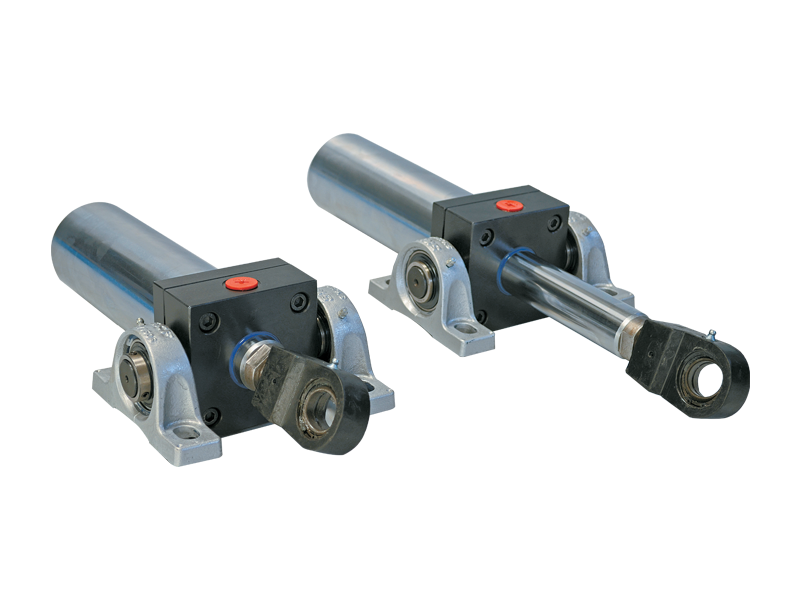

Trunnion Mounted
Trunnion & Ram End Self-aligning Clevis
Both End Self-aligning Clevis
Both End Self-aligning Clevis-1
Both End Self-aligning Clevis-2
Both End Self-aligning Clevis-3
Both End Self-aligning Clevis-4

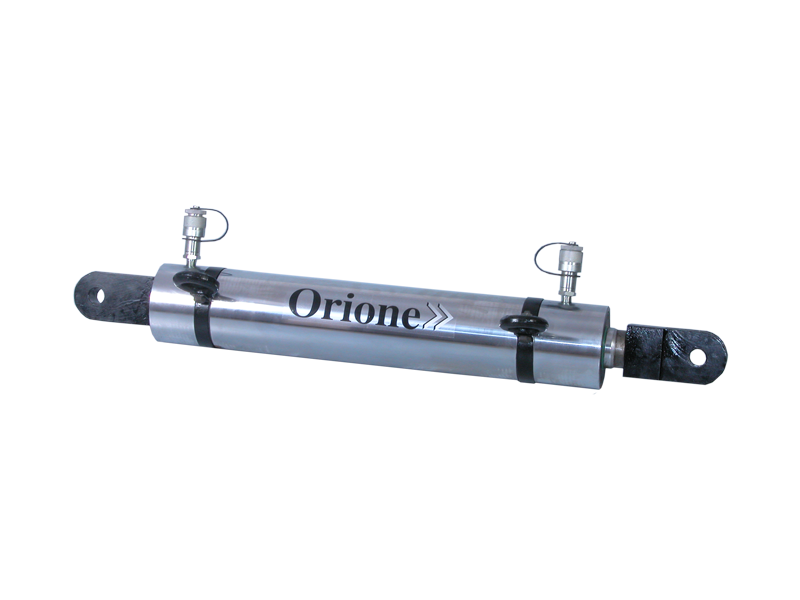

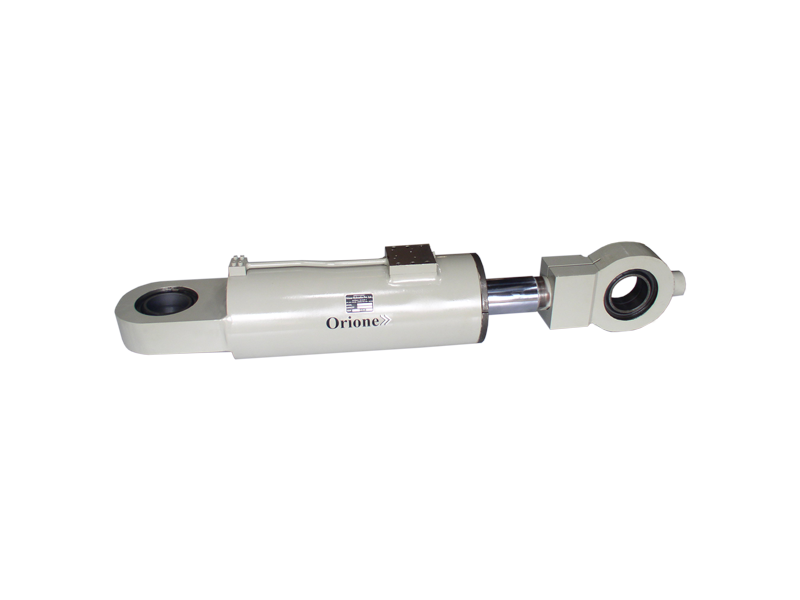

Both End Clevis Cylinders-2

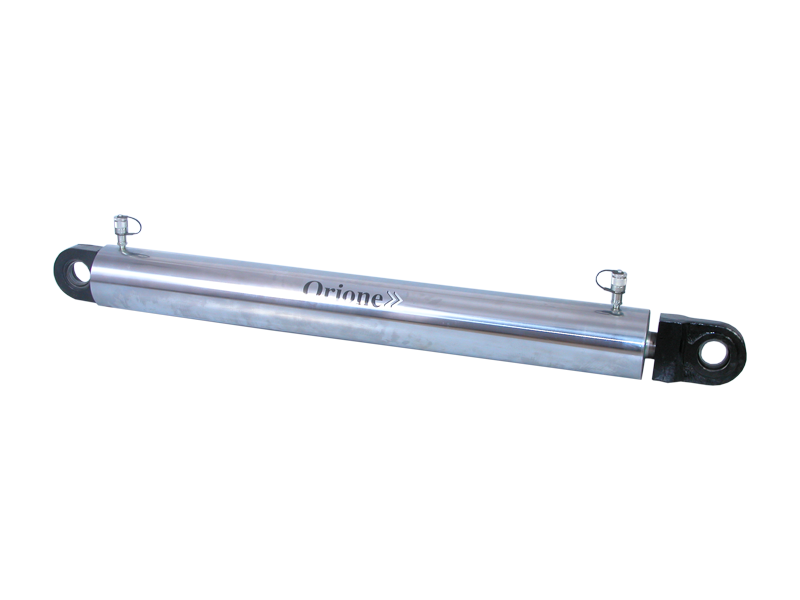

Both End Clevis Cylinders-3

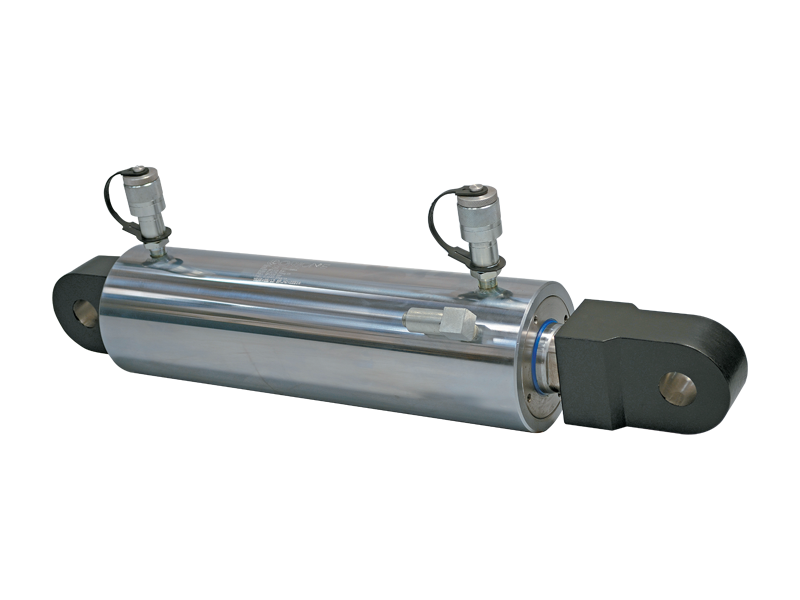

Both End Clevis Cylinders-5

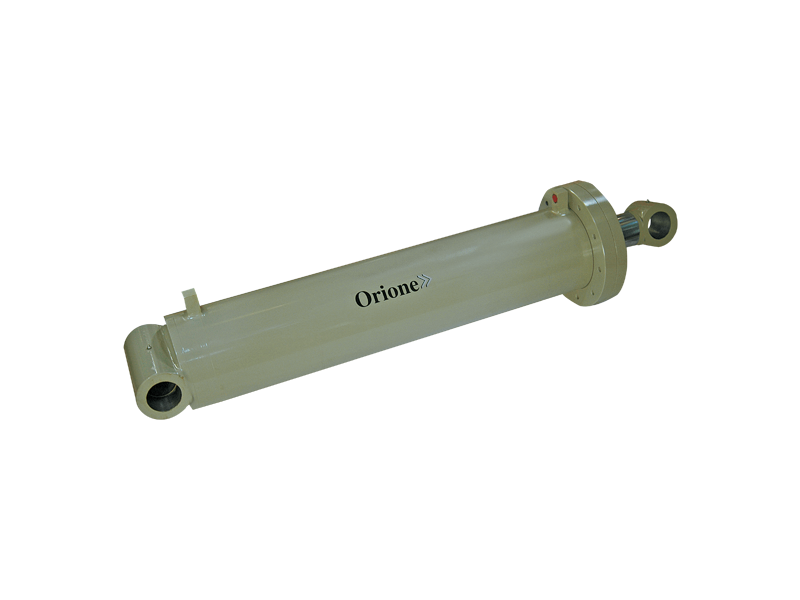

Both End Clevis Cylinders-6

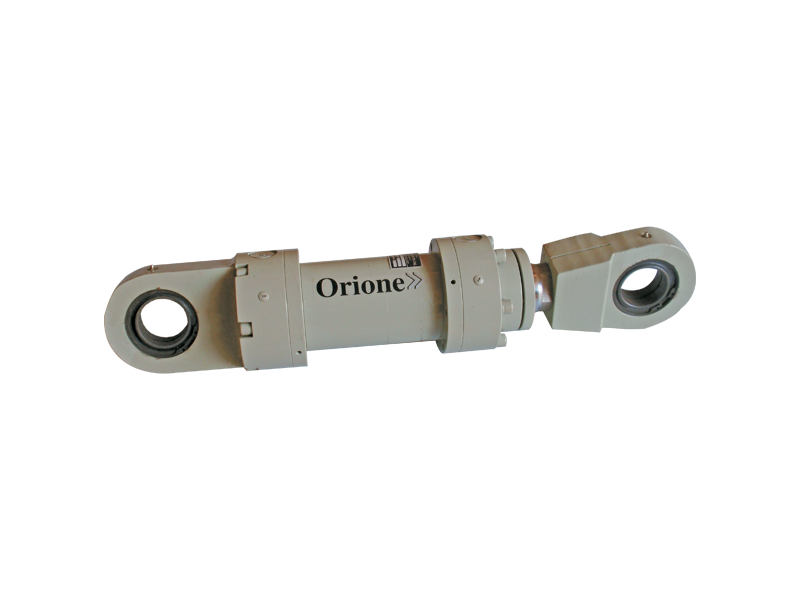

Both End Clevis Cylinders-4
Double Acting Cushioned Cylinder
Ram End Self-aligning Clevis

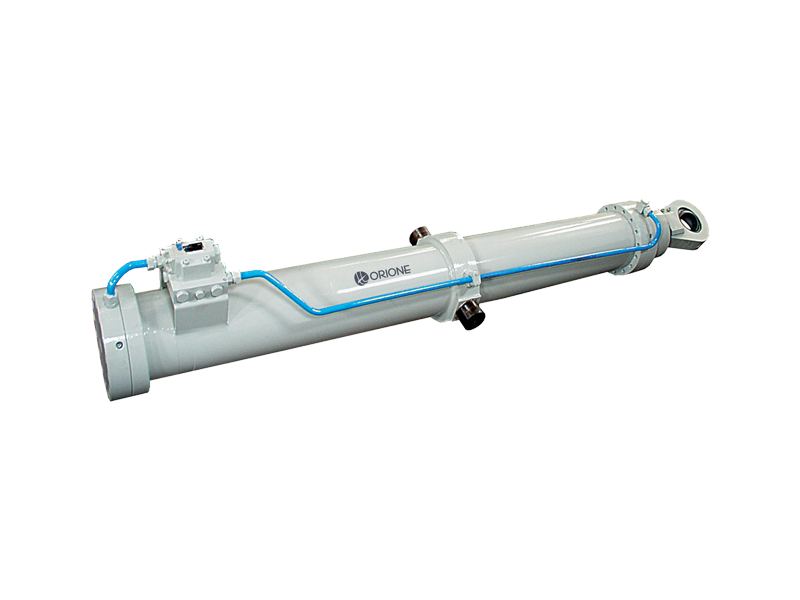

Trunnion Mounted With Valve Block
2 Stage with Both End Clevis

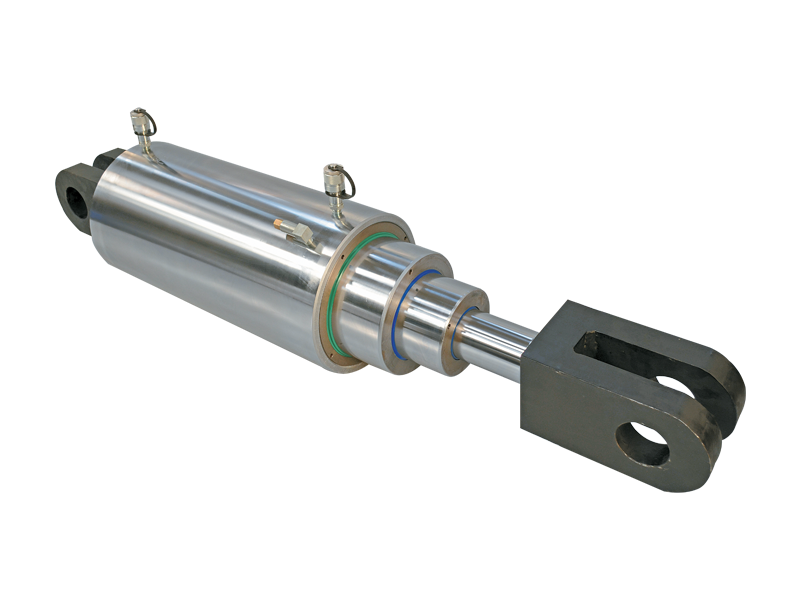

3 Stage with Both End Clevis
3 Stage with Both End Clevis

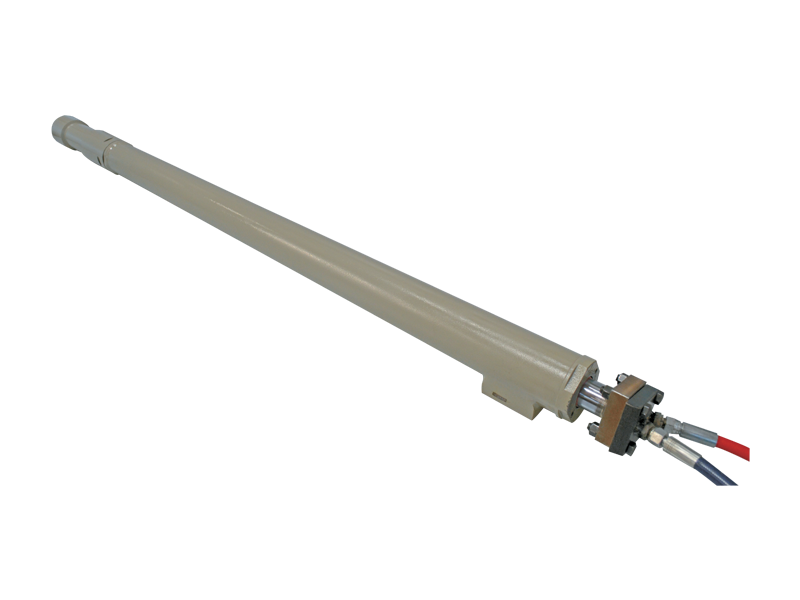

Forward & Return Ports On Piston Rod
