Flat Jacks Single Acting
Flat Jacks Single Acting
Hydraulic Capacity: 5-200 Tons | Stroke Range: 8-16 mm | Maximum Working Pressure: 700 Bar
Application :

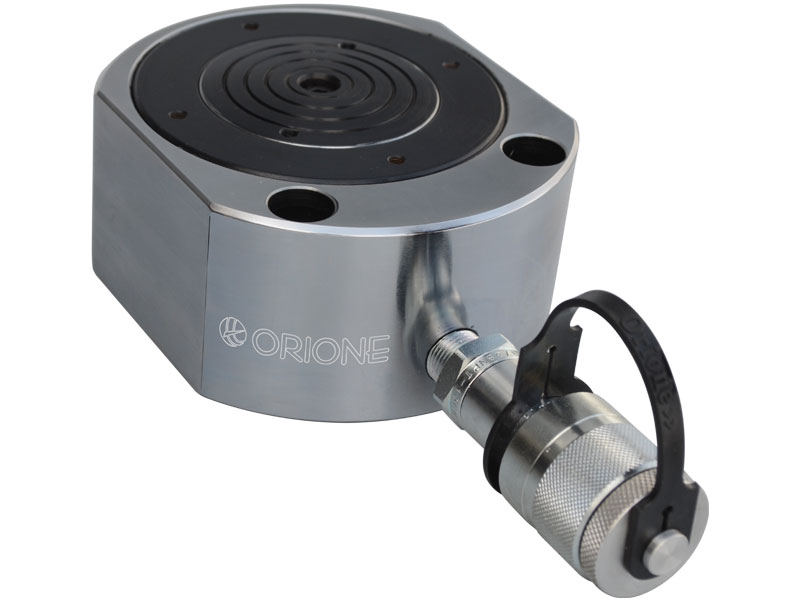

- Compact, Flat Design — Ideal for Tight Spaces with Minimal Clearance for Jack Insertion
- Features Mounting Holes for Easy Fixturing

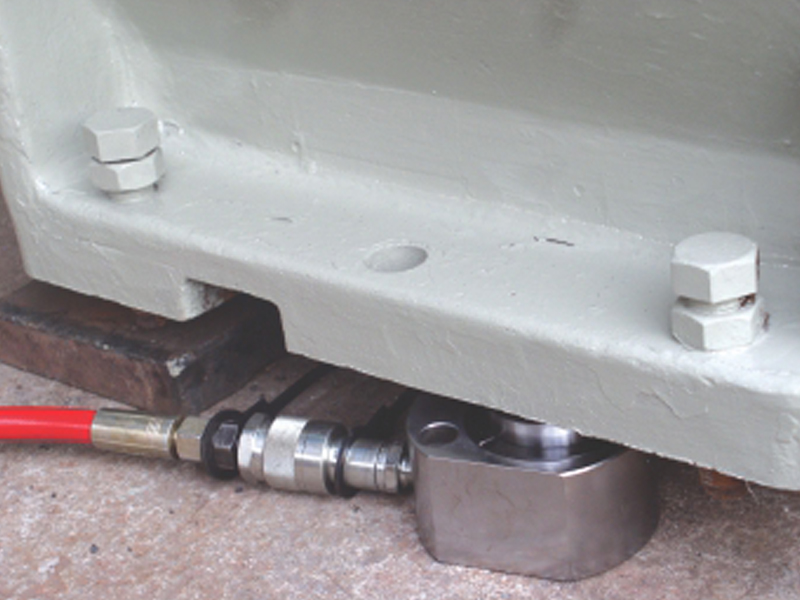

- Applications: Perfect for Structural Weld Positioning, Rigging in Bridge Construction, Heavy Fabrication, and Maintenance Tasks
- Caution: Always provide a level and solid support for the entire jack base area, as the ram guide length is limited.
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | Effective area (cm2) |
Oil cap. (cc) |
Closed height (mm) |
Wt. (Approx.) (kg) |
|---|---|---|---|---|---|---|---|
| 5 | 56 | 8 | OSF 5-8 | 8 | 6 | 35 | 0.6 |
| 10 | 111 | 12 | OSF 10-12 | 15.9 | 19 | 45 | 1.3 |
| 20 | 218 | 12 | OSF 20-12 | 31.2 | 37 | 55 | 2.6 |
| 30 | 309 | 12 | OSF 30-12 | 44.2 | 53 | 60 | 3.8 |
| 50 | 550 | 16 | OSF 50-16 | 78.5 | 126 | 65 | 6.2 |
| 75 | 792 | 16 | OSF 75-16 | 113.1 | 180 | 80 | 11.8 |
| 100 | 1077 | 16 | OSF 100-16 | 153.9 | 247 | 85 | 15.1 |
| 150 | 1589 | 16 | OSF 150-16 | 227 | 363 | 100 | 27 |
| 200 | 1985 | 16 | OSF 200-16 | 283.5 | 454 | 115 | 40.7 |
