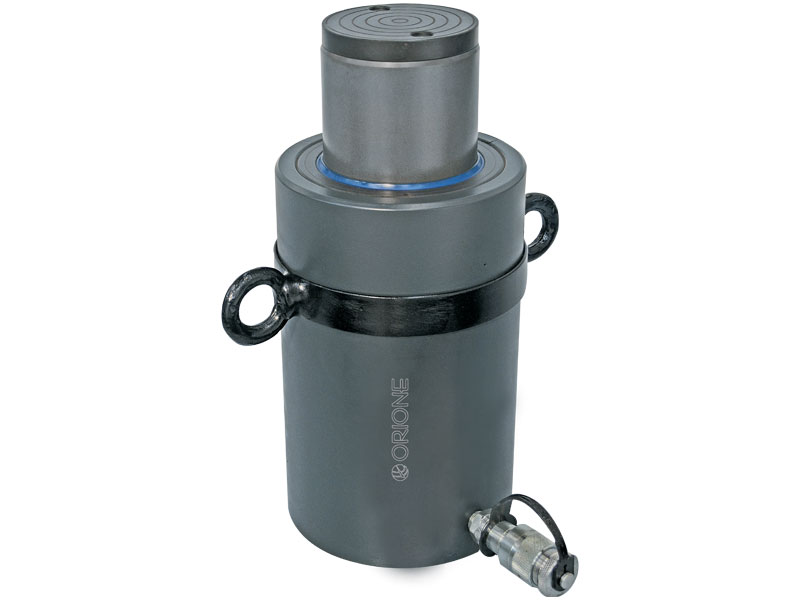

Aluminium General Purpose Jacks - Plain Ram
Aluminium General Purpose Jacks - Plain Ram
Load Capacity: 30 to 200 Tons | Stroke Length: 150 mm | Maximum Working Pressure: 700 Bar
Application :
- Up to 50% lighter than traditional steel jacks, with a proven lifespan of over 5,000 duty cycles.
- Designed for both horizontal and vertical operation.

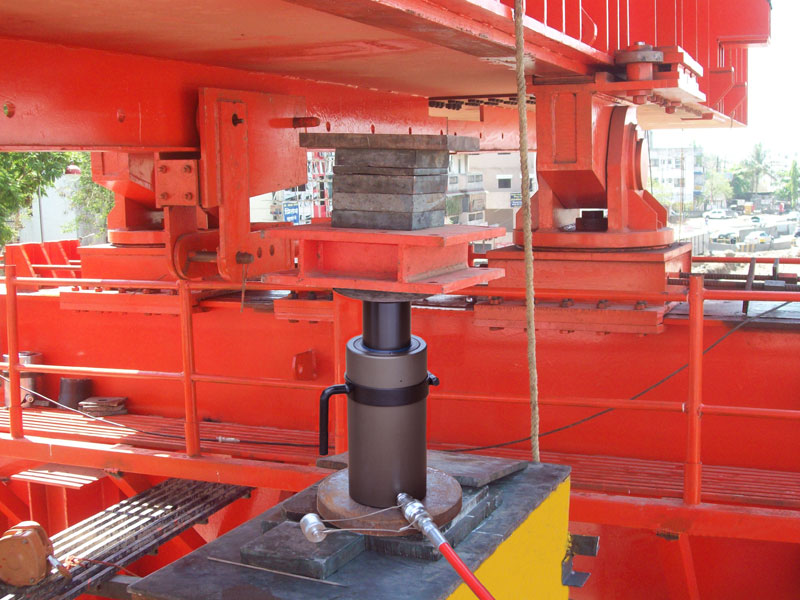

- Ideal for general-purpose lifting applications.
- Composite guide rings on the piston and gland nut enable smooth, multi-directional use when centrally loaded.
- All sub-assemblies are anodized for superior corrosion resistance and durability.
- Optional base mounting holes for flexible installation and secure setup.
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | Effective area (cm2) |
Oil cap. (cc) |
Closed height (mm) |
Wt. (Approx.) (kg) |
|---|---|---|---|---|---|---|---|
| 30 | 309 | 150 | OASP 30-150 | 44.2 | 663 | 290 | 6 |
| 50 | 550 | 150 | OASP 50-150 | 78.5 | 1178 | 300 | 8 |
| 100 | 1077 | 150 | OASP 100-150 | 153.9 | 2309 | 320 | 23 |
| 150 | 1589 | 150 | OASP 150-150 | 227 | 3405 | 345 | 34 |
| 200 | 2199 | 150 | OASP 200-150 | 314.2 | 4713 | 370 | 50 |
