General Purpose Jacks

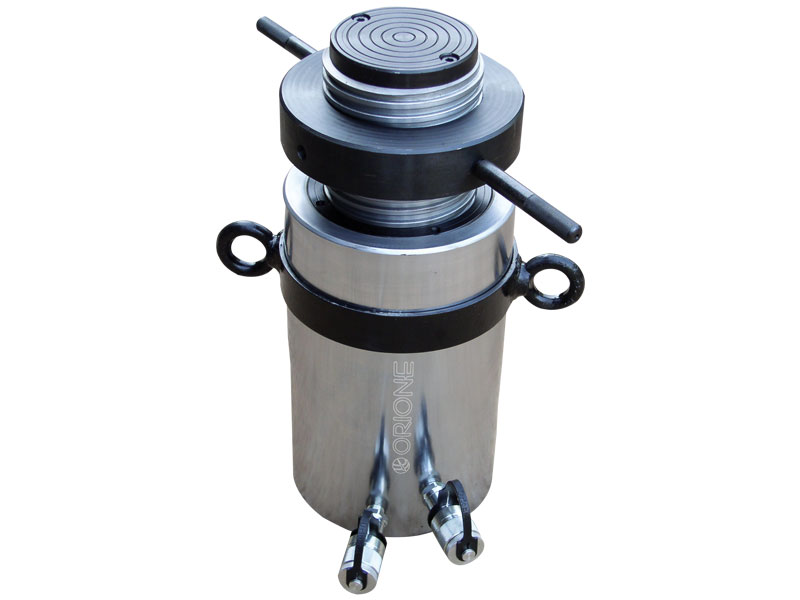

General Purpose Jacks Threaded Ram Double Acting

Suitable for general lifting and push-pull applications across various industries.

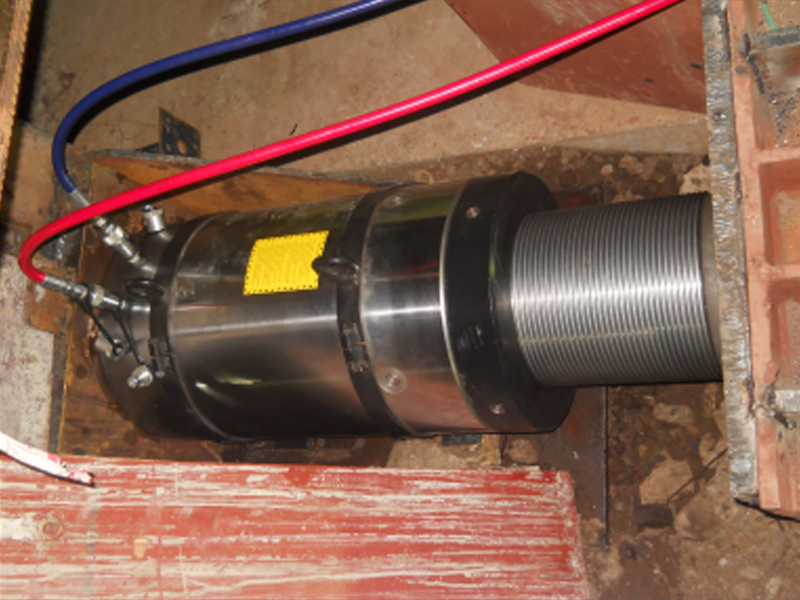

Designed for sustained load holding with lock nut functionality in both vertical and horizontal orientations.
Enables fast and complete ram retraction for improved efficiency.

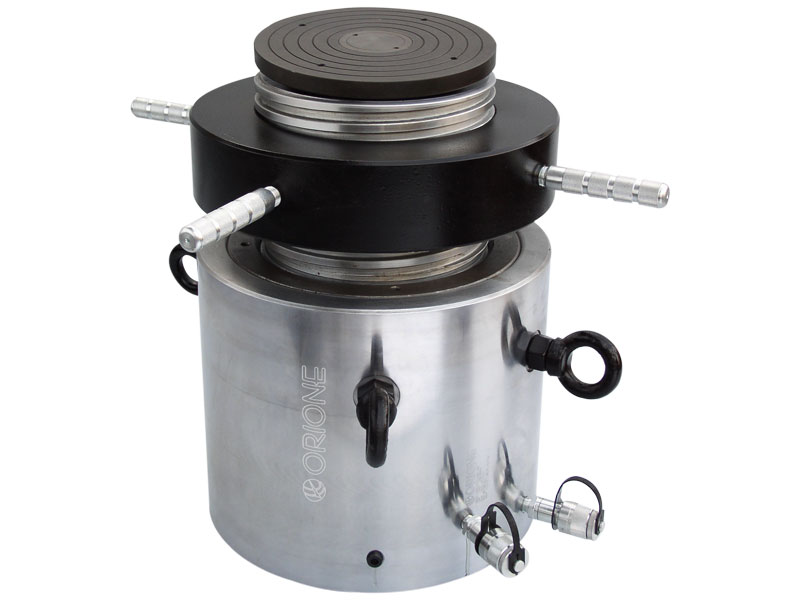

Equipped with a spherical saddle for 500-ton models and above (optional for lower capacities).
Ideal for use in construction, heavy fabrication, and industrial sectors.

Capacity (ton)	Capacity (kN)	Stroke (mm)	Model	Effective area (cm2)	Oil cap. (cc)	Closed height (mm)	Wt. (Approx.) (kg)
50	535	150	ODT 50-150	76.4	1146	325	36.5
50	535	300	ODT 50-300	76.4	2293	475	43.5
100	1126	150	ODT 100-150	160.8	2412	350	76.5
100	1126	300	ODT 100-300	160.8	4825	500	102
150	1644	150	ODT 150-150	234.8	3524	380	110.5
150	1644	300	ODT 150-300	234.8	7045	530	146
200	2227	150	ODT 200-150	318.1	4773	400	159.5
200	2227	300	ODT 200-300	318.1	9543	550	202
250	2639	150	ODT 250-150	377	5656	400	197.5
250	2639	300	ODT 250-300	377	11310	550	250
300	3223	150	ODT 300-150	460.4	6907	410	248.5
300	3223	300	ODT 300-300	460.4	13814	560	315.5
400	4502	150	ODT 400-150	643.2	9650	435	357.5
400	4502	300	ODT 400-300	643.2	19298	585	458
500	5438	150	-	776.8	11651	-	-
500	5438	300	-	776.8	23303	-	-
600	6460	150	-	922.8	13842	-	-
600	6460	300	-	922.8	27685	-	-
800	8576	150	-	1225.2	18380	-	-
800	8576	300	-	1225.2	36756	-	-
1000	10842	150	-	1548.8	23235	-	-
1000	10842	300	-	1548.8	46464	-	-

Capacity (ton)	Capacity (kN)	Stroke (mm)	Model	Effective area (cm2)	Oil cap. (cc)	Closed height (mm)	Wt. (Approx.) (kg)
50	535	150	ODTS 50-150	76.4	1146	340	38.5
50	535	300	ODTS 50-300	76.4	2293	490	45.5
100	1126	150	ODTS 100-150	160.8	2412	365	79.5
100	1126	300	ODTS 100-300	160.8	4825	515	105
150	1644	150	ODTS 150-150	234.8	3524	400	113.5
150	1644	300	ODTS 150-300	234.8	7045	550	148
200	2227	150	ODTS 200-150	318.1	4773	420	167.5
200	2227	300	ODTS 200-300	318.1	9543	570	204.5
250	2639	150	ODTS 250-150	377	5656	425	210.5
250	2639	300	ODTS 250-300	377	11310	575	253.5
300	3223	150	ODTS 300-150	460.4	6907	440	265.5
300	3223	300	ODTS 300-300	460.4	13814	590	320.5
400	4502	150	ODTS 400-150	643.2	9650	470	389.5
400	4502	300	ODTS 400-300	643.2	19298	620	464
500	5438	150	ODTS 500-150	776.8	11651	485	491
500	5438	300	ODTS 500-300	776.8	23303	635	592
600	6460	150	ODTS 600-150	922.8	13842	510	625
600	6460	300	ODTS 600-300	922.8	27685	660	703
800	8576	150	ODTS 800-150	1225.2	18380	550	975
800	8576	300	ODTS 800-300	1225.2	36756	700	1048
1000	10842	150	ODTS 1000-150	1548.8	23235	585	1160
1000	10842	300	ODTS 1000-300	1548.8	46464	735	1354
