Hydraulic Hand Pumps (Steel - Single / Two Stage)
Hydraulic Hand Pumps Steel
Hydraulic Hand Pumps Steel
Working Pressure upto 700 bar
Application :
- High-Quality Construction Grade Steel for superior strength and durability
- Precision-Ground and Plated Plungers for extended life and smooth operation
- Integrated Factory-Set Safety Relief Valve ensures consistent and safe performance
- Durable Polyurethane Plunger Seals for leak-proof and long-lasting use
- Single-Stage Hydraulic Pumps – Ideal for low-capacity jack applications
- Two-Stage Hydraulic Pumps - Enables fast load approach and efficient operation
- Fully Compatible with Leading Hydraulic Jack Brands
- Available Pressure Ratings: 350 bar, 1000 bar, 1600 bar, and 2800 bar
- "How To Choose A Pump"
| Pump Stage | Model | Pressure 1st stage (kg/cm2) |
Pressure 2nd stage (kg/cm2) |
Flow / stroke 1st stage (cc) |
Flow / stroke 2nd stage (cc) |
Filling Capacity (ltrs.) |
Usable Oil (ltrs.) |
Handle Effort (kg) |
Dry Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|

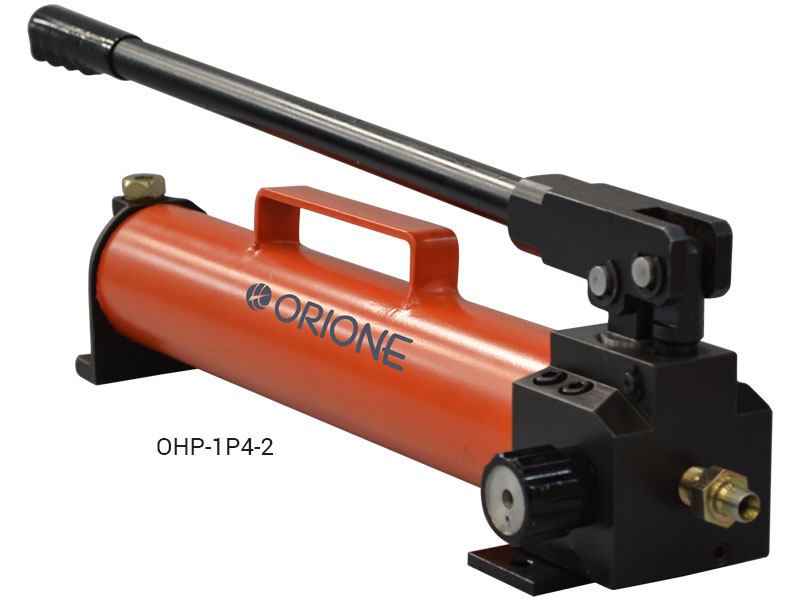

| Single | OHP-1P4-2-1.5 | - | 700 | - | 2.8 | 1.5 | 1 | 40 | 7.4 |
| Single | OHP-1P4-2-2 | - | 700 | - | 2.8 | 2 | 1.5 | 40 | 9.5 |
| Single | OHP-1P4-2-4 | - | 700 | - | 2.8 | 4 | 2.9 | 40 | 10.5 |

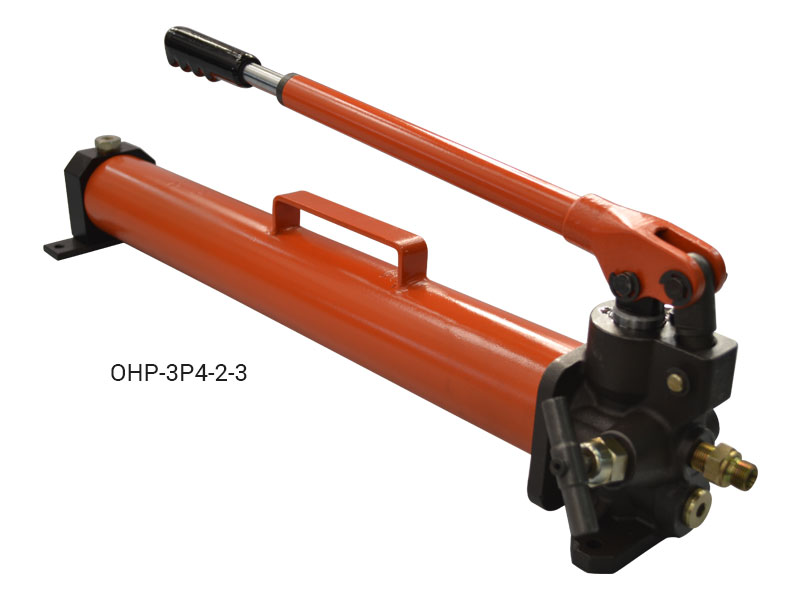

| Two | OHP-3P4-2-3 | 30 | 700 | 17 | 2.8 | 3 | 1.9 | 40 | 12.5 |
| Pump Stage | Model | Pressure 1st stage (kg/cm2) |
Pressure 2nd stage (kg/cm2) |
Flow / stroke 1st stage (cc) |
Flow / stroke 2nd stage (cc) |
Filling Capacity (ltrs.) |
Usable Oil (ltrs.) |
Handle Effort (kg) |
Dry Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|

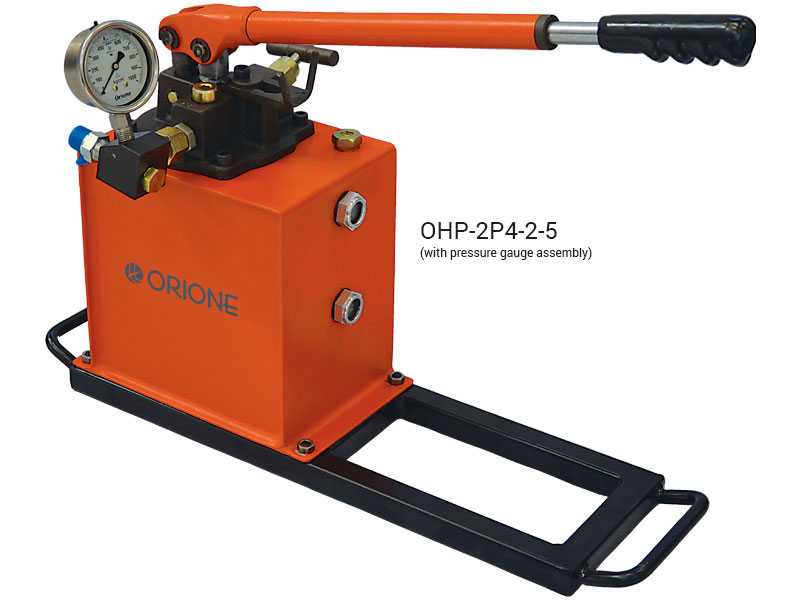

| Two | OHP-2P4-2-5 | 30 | 700 | 49 | 2.8 | 5 | 3.5 | 40 | 18.5 |

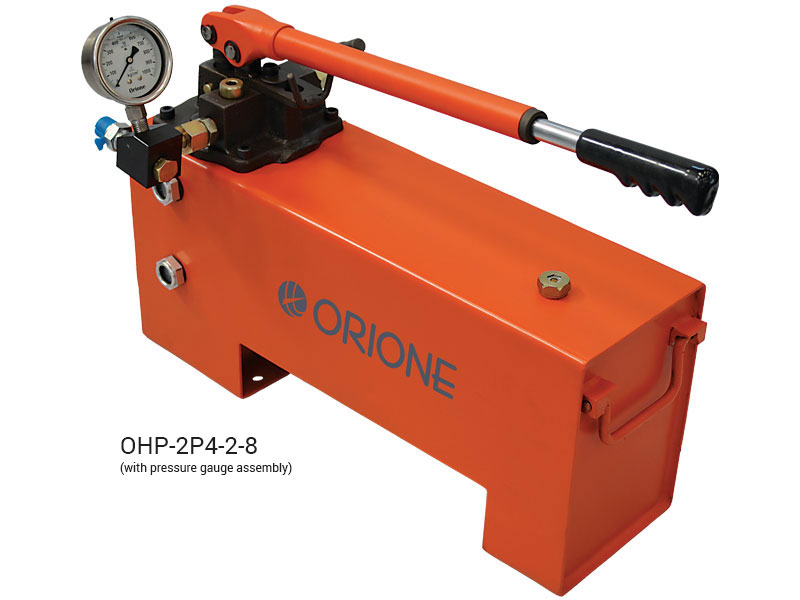

| Two | OHP-2P4-2-8 | 30 | 700 | 49 | 2.8 | 8 | 7.5 | 40 | 20 |
| Two | OHP-2P4-2-13 | 30 | 700 | 49 | 2.8 | 13 | 11 | 40 | 24.5 |
| Two | OHP-2P4-2-20 | 30 | 700 | 49 | 2.8 | 20 | 16 | 40 | 28 |
