Tx Low Profile - The Solution
Tx saves time when precise torque is required
Technical Specification :
| Clearance ABOVE The Nut | - | No Problem For A TX! |
| Clearance BEHIND The Nut | - | No Problem For A TX! |
| Clearance BETWEEN The Nut | - | No Problem For A TX! |
The Torcup Patented Peanut Shape Piston Design assures That your application will have the correct torque applied every time.
Tx cylinder and link are the same width. A Torcup exclusive.

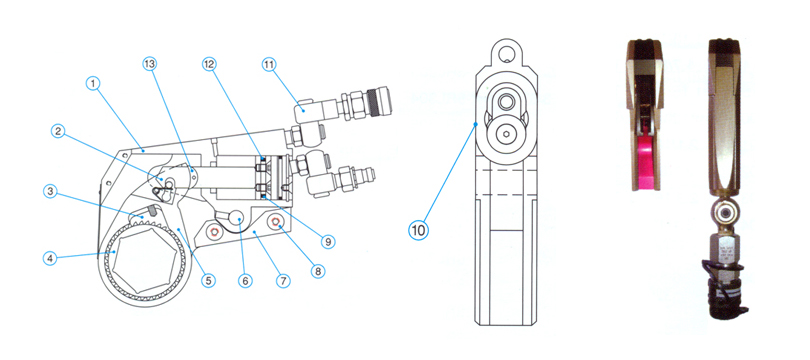

1
|
Patented "Peanut Shaped Cylinder"
|
Fit both the cylinder and link in confined areas.
|
2
|
Engagement Rod
|
Automatically engages link on the first stroke.
|
3
|
Never-Lock Drive Pawl
|
Ensures tool will NEVER lock up.
|
4
|
Multi-Tooth Ratchet
|
Allows for 27 degree torque stroke accuracy.
|
5
|
One Piece Drive Plate
|
Robust alloy provides for small nose radius.
|
6
|
Link Pin
|
One pin for link to cylinder engagement. No tools required.
|
7
|
In-Line Reaction Pad
|
Assures torsion free reaction every time.
|
8
|
Steel Alignment Pin
|
Assures equal load displacement between side plates.
|
9
|
Piston Tension O-Ring
|
Tension locks piston seal into "Peanut" bore.
|
10
|
Completely Flat Design
|
Cylinder and link width are equal for tight fits.
|
11
|
360 x 360 Swivel
|
Allows hose to be cleared on all applications.
|
12
|
Teflon Piston Seal
|
Patented technology provides years of maintenance free use.
|
13
|
Slider
|
Prevents wear of piston or drive plate. Reduces costly repairs. |
