General Purpose Jacks Single Acting

Hydraulic Capacity: 5-1000 Tons | Stroke Range: 50-200 mm | Maximum Working Pressure: 700 Bar

Application :

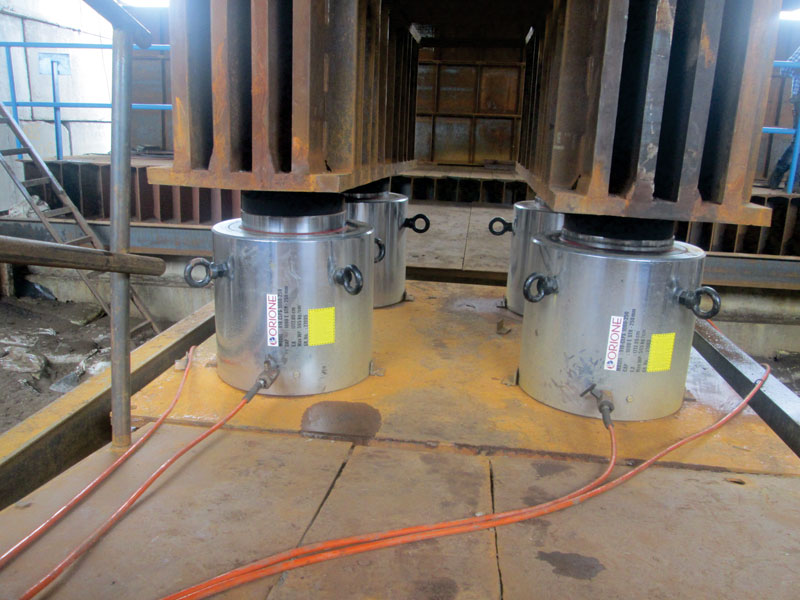

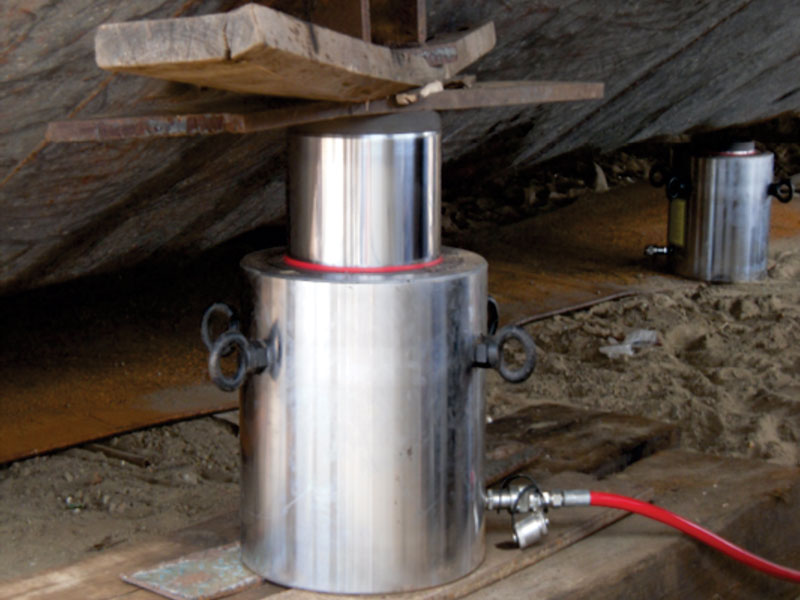

Ideal for Applications Requiring Sustained Load Holding, Such as Concrete Pile Testing and Bridge Support in Construction
Versatile for Industrial Maintenance in Sectors Like Steel, Cement, and Power Plants

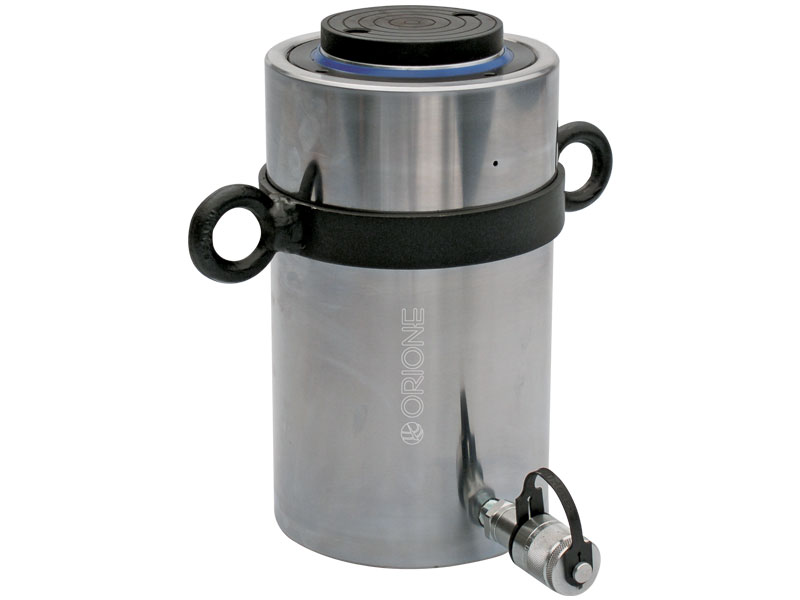

Capacity (ton)	Capacity (kN)	Stroke (mm)	Model	Effective area (cm2)	Oil cap. (cc)	Closed height (mm)	Wt. (Approx.) (kg)
5	56	50	OSP 5-50	8	40	135	1.3
5	56	100	OSP 5-100	8	80	185	1.8
5	56	150	OSP 5-150	8	121	235	2.3
10	111	50	OSP 10-50	15.9	80	135	2.4
10	111	100	OSP 10-100	15.9	159	185	3.2
10	111	150	OSP 10-150	15.9	239	235	4
10	111	200	OSP 10-200	15.9	318	285	4.7
15	167	50	OSP 15-50	23.8	119	140	4.4
15	167	100	OSP 15-100	23.8	238	190	5.4
15	167	150	OSP 15-150	23.8	356	240	6.4
15	167	200	OSP 15-200	23.8	475	290	7.4
20	218	50	OSP 20-50	31.2	156	145	4.8
20	218	100	OSP 20-100	31.2	312	195	6
20	218	150	OSP 20-150	31.2	468	245	7.4
20	218	200	OSP 20-200	31.2	623	295	8.6
25	270	50	OSP 25-50	38.5	192	155	6.7
25	270	100	OSP 25-100	38.5	385	205	8.4
25	270	150	OSP 25-150	38.5	577	255	10
25	270	200	OSP 25-200	38.5	770	305	11.8
30	309	50	OSP 30-50	44.2	221	160	9
30	309	100	OSP 30-100	44.2	442	210	11.5
30	309	150	OSP 30-150	44.2	663	260	13.5
30	309	200	OSP 30-200	44.2	884	310	15.5
50	550	50	OSP 50-50	78.5	393	175	15.5
50	550	100	OSP 50-100	78.5	785	225	19
50	550	150	OSP 50-150	78.5	1178	275	22.5
50	550	200	OSP 50-200	78.5	1571	325	26.5
75	792	50	OSP 75-50	113.1	565	180	22
75	792	100	OSP 75-100	113.1	1131	230	27
75	792	150	OSP 75-150	113.1	1696	280	33
75	792	200	OSP 75-200	113.1	2262	330	38
100	1077	50	OSP 100-50	153.9	770	185	30
100	1077	100	OSP 100-100	153.9	1539	235	37.5
100	1077	150	OSP 100-150	153.9	2309	285	44.5
100	1077	200	OSP 100-200	153.9	3079	335	52
150	1589	50	OSP 150-50	227	1135	200	54
150	1589	100	OSP 150-100	227	2270	250	65
150	1589	150	OSP 150-150	227	3405	300	76
200	2199	50	OSP 200-50	314.2	1571	215	71
200	2199	100	OSP 200-100	314.2	3142	265	86.5
200	2199	150	OSP 200-150	314.2	4712	315	102
250	2661	100	OSP 250-100	380.1	3801	270	109
250	2661	150	OSP 250-150	380.1	5702	320	126
250	2661	200	OSP 250-200	380.1	7603	370	143
300	3167	100	OSP 300-100	452.4	4524	285	141
300	3167	150	OSP 300-150	452.4	6786	335	164
300	3167	200	OSP 300-200	452.4	9048	385	187
400	4008	100	OSP 400-100	572.6	5726	315	190
400	4008	150	OSP 400-150	572.6	8588	365	217
400	4008	200	OSP 400-200	572.6	11451	415	243

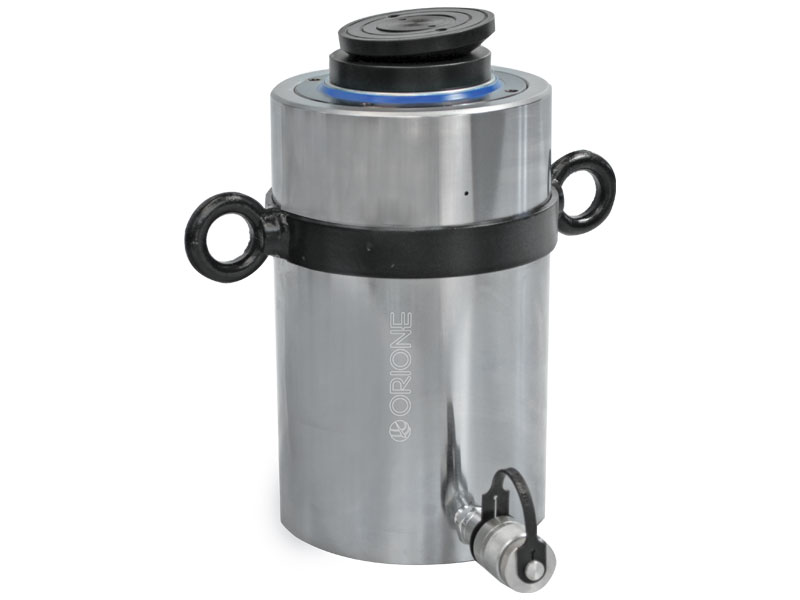

Capacity (ton)	Capacity (kN)	Stroke (mm)	Model	Effective area (cm2)	Oil cap. (cc)	Closed height (mm)	Wt. (Approx.) (kg)
10	111	50	OSPS 10-50	15.9	80	145	2.6
10	111	100	OSPS 10-100	15.9	159	195	3.4
10	111	150	OSPS 10-150	15.9	239	245	4.2
10	111	200	OSPS 10-200	15.9	318	295	4.9
15	167	50	OSPS 15-50	23.8	119	155	4.6
15	167	100	OSPS 15-100	23.8	238	205	5.6
15	167	150	OSPS 15-150	23.8	356	255	6.6
15	167	200	OSPS 15-200	23.8	475	305	7.6
20	218	50	OSPS 20-50	31.2	156	160	5.1
20	218	100	OSPS 20-100	31.2	312	210	6.3
20	218	150	OSPS 20-150	31.2	468	260	7.7
20	218	200	OSPS 20-200	31.2	623	310	8.9
25	270	50	OSPS 25-50	38.5	192	170	7
25	270	100	OSPS 25-100	38.5	385	220	8.7
25	270	150	OSPS 25-150	38.5	577	270	10.3
25	270	200	OSPS 25-200	38.5	770	320	12.1
30	309	50	OSPS 30-50	44.2	221	175	9.4
30	309	100	OSPS 30-100	44.2	442	225	11.9
30	309	150	OSPS 30-150	44.2	663	275	13.9
30	309	200	OSPS 30-200	44.2	884	325	15.9
50	550	50	OSPS 50-50	78.5	393	190	16
50	550	100	OSPS 50-100	78.5	785	240	19.5
50	550	150	OSPS 50-150	78.5	1178	290	23
50	550	200	OSPS 50-200	78.5	1571	340	27
75	792	50	OSPS 75-50	113.1	565	205	22.9
75	792	100	OSPS 75-100	113.1	1131	255	27.9
75	792	150	OSPS 75-150	113.1	1696	305	33.9
75	792	200	OSPS 75-200	113.1	2262	355	38.9
100	1077	50	OSPS 100-50	153.9	770	205	31
100	1077	100	OSPS 100-100	153.9	1539	255	38.5
100	1077	150	OSPS 100-150	153.9	2309	305	45.5
100	1077	200	OSPS 100-200	153.9	3079	355	53
150	1589	50	OSPS 150-50	227	1135	225	56
150	1589	100	OSPS 150-100	227	2270	275	67
150	1589	150	OSPS 150-150	227	3405	325	78
200	2199	50	OSPS 200-50	314.2	1571	240	74.5
200	2199	100	OSPS 200-100	314.2	3142	290	90
200	2199	150	OSPS 200-150	314.2	4712	340	105.5
250	2661	100	OSPS 250-100	380.1	3801	305	114
250	2661	150	OSPS 250-150	380.1	5702	355	131
250	2661	200	OSPS 250-200	380.1	7603	405	148
300	3167	100	OSPS 300-100	452.4	4524	320	148
300	3167	150	OSPS 300-150	452.4	6786	370	171
300	3167	200	OSPS 300-200	452.4	9048	420	194
400	4008	100	OSPS 400-100	572.6	5726	355	201
400	4008	150	OSPS 400-150	572.6	8588	405	228
400	4008	200	OSPS 400-200	572.6	11451	455	254
500	4948	100	OSPS 500-100	706.9	7069	365	270
500	4948	150	OSPS 500-150	706.9	10603	415	306
500	4948	200	OSPS 500-200	706.9	14137	465	343

Capacity (ton)	Capacity (kN)	Stroke (mm)	Model	Effective area (cm2)	Oil cap. (cc)	Closed height (mm)	Wt. (Approx.) (kg)
600	5987	100	OLPS 600-100	855.3	8553	390	357
600	5987	150	OLPS 600-150	855.3	12829	440	404
600	5987	200	OLPS 600-200	855.3	17106	490	450
800	7939	100	OLPS 800-100	1134.1	11341	425	525
800	7939	150	OLPS 800-150	1134.1	17012	475	590
800	7939	200	OLPS 800-200	1134.1	22682	525	654
1000	9930	100	OLPS 1000-100	1418.6	14186	460	721
1000	9930	150	OLPS 1000-150	1418.6	21279	510	800
1000	9930	200	OLPS 1000-200	1418.6	28373	560	879
1500	15154	100	OLPS 1500-100	2164.8	21648	545	1352
1500	15154	150	OLPS 1500-150	2164.8	32472	595	1482
1500	15154	200	OLPS 1500-200	2164.8	43296	645	1612
2000	20458	100	OLPS 2000-100	2922.5	29225	615	2023
2000	20458	150	OLPS 2000-150	2922.5	43837	665	2195
2000	20458	200	OLPS 2000-200	2922.5	58450	715	2367
