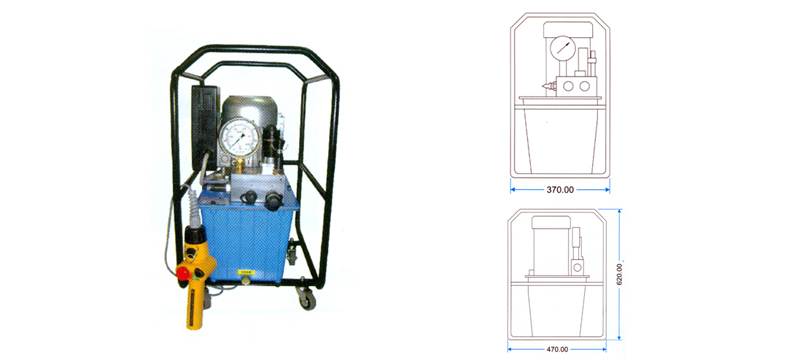

Electric Power Packs EP 1000 (Shown with Mono - Port)
EP 1000 - High Flow - High Speed For Heavy Duty Application
- Quadra-Torc Multi-Port Manifold - Supports up to 4 ports for simultaneous tool operation
- Cool-Running, Continuous-Duty Axial Piston Pump - Built for demanding applications
- Reliable Single-Phase Induction Motor
- Available in 115V and 230V Configurations
- Starts Under Full Load Without Hesitation
- Operates Efficiently on Reduced Voltage
- Low Noise Output - Approximately 80 dBA @ 10,000 PSI
- Durable Remote Pendant with Precision Control Knob
- Auto-Dump Feature Quickly Relieves Hose Pressure
- Fully Enclosed Motor Housing and Electronics for Protection
- 2-Gallon Oil Reservoir for Extended Operation
- Accurate PSI/BAR Pressure Gauge for Precision Monitoring
- Quick-Connect, No-Drip Couplers with Safety Locking Collars
- Supplied with Dual Non-Conductive High-Pressure Hoses with Couplers
Technical Specification :
| Resvr.Size (Gal.) | Valve | Motor Specifications |
Flow Rate @ 115 VAC | Weight | |||
| Control | Type | 600 psi | 10,000 psi | Kg | Lbs | ||
| 2 | Solenoid | 3 Way/2 Pos. | 1.5 HP Single Phase | 11.47 Lpm | 0.82 Lpm | 38 | 84 |
