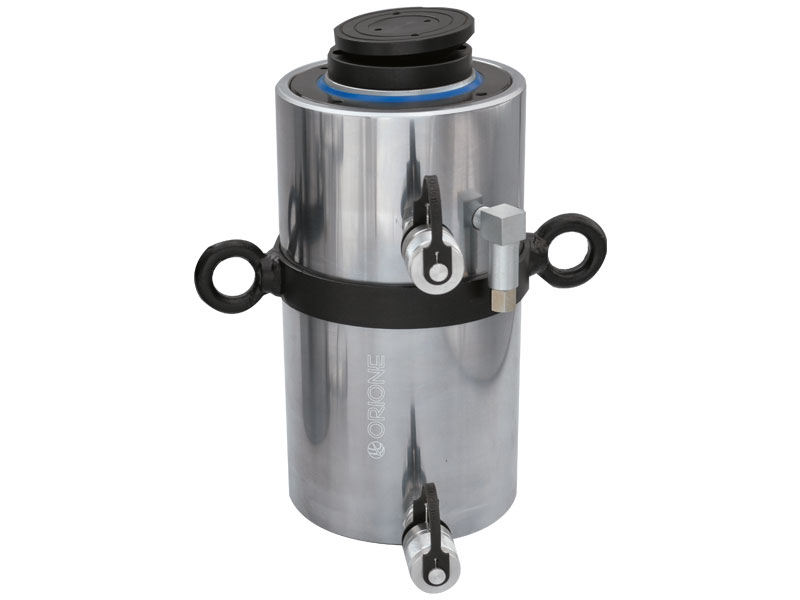

General Purpose Jacks Double Acting

General Purpose Jacks

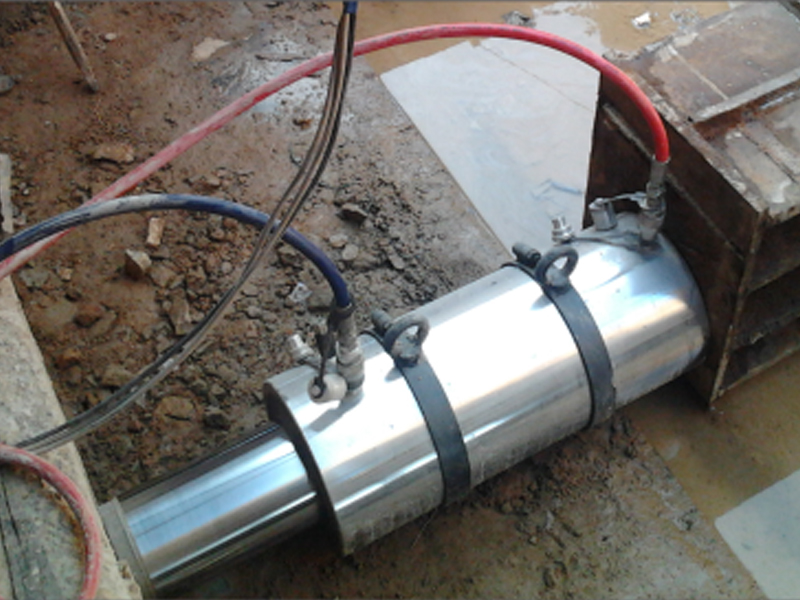

Suitable for lifting, positioning, and both horizontal and vertical applications. Widely used in heavy fabrication, shipbuilding, and construction industries.

Capacity (ton)	Capacity (kN)	Stroke (mm)	Model	Effective area (cm2)	Oil cap. (cc)	Closed height (mm)	Wt. (Approx.) (kg)
10	111	150	ODP 10-150	15.9	239	275	8
15	167	150	ODP 15-150	23.8	356	280	10.5
20	218	150	ODP 20-150	31.2	468	285	14.2
25	270	150	ODP 25-150	38.5	577	295	14
30	309	150	ODP 30-150	44.2	663	305	16
50	550	150	ODP 50-150	78.5	1178	305	25.5
75	792	150	ODP 75-150	113.1	1696	305	36.5
100	1077	150	ODP 100-150	153.9	2309	310	52.5
150	1589	150	ODP 150-150	227	3405	320	83
200	2199	150	ODP 200-150	314.2	4712	345	114
250	2661	150	ODP 250-150	380.1	5702	350	145.5
300	3167	150	ODP 300-150	452.4	6786	365	179
400	4008	150	ODP 400-150	572.6	8588	385	257
500	4948	150	-	706.9	10603	-	-
600	5987	150	-	855.3	12829	-	-
800	7939	150	-	1134.1	17012	-	-
1000	9930	150	-	1418.6	21279	-	-
1500	15154	150	-	2164.8	32472	-	-
2000	20458	150	-	2922.5	43837	-	-

Capacity (ton)	Capacity (kN)	Stroke (mm)	Model	Effective area (cm2)	Oil cap. (cc)	Closed height (mm)	Wt. (Approx.) (kg)
10	111	150	ODPS 10-150	15.9	239	285	8.2
15	167	150	ODPS 15-150	23.8	356	290	10.7
20	218	150	ODPS 20-150	31.2	468	300	14.5
25	270	150	ODPS-25-150	38.5	577	310	14.3
30	309	150	ODPS 30-150	44.2	663	320	16.5
50	550	150	ODPS 50-150	78.5	1178	320	26.5
75	792	150	ODPS 75-150	113.1	1696	330	37.5
100	1077	150	ODPS 100-150	153.9	2309	330	54
150	1589	150	ODPS 150-150	227	3405	345	85.5
200	2199	150	ODPS 200-150	314.2	4712	370	117.5
250	2661	150	ODPS 250-150	380.1	5702	385	150.5
300	3167	150	ODPS 300-150	452.4	6786	400	188
400	4008	150	ODPS 400-150	572.6	8588	425	268
500	4948	150	ODPS 500-150	706.9	10603	450	365
600	5987	150	ODPS 600-150	855.3	12829	480	450
800	7939	150	ODPS 800-150	1134.1	17012	515	645
1000	9930	150	ODPS 1000-150	1418.6	21279	560	868
1500	15154	150	ODPS 1500-150	2164.8	32472	620	1534
2000	20458	150	ODPS 2000-150	2922.5	43837	705	2357
