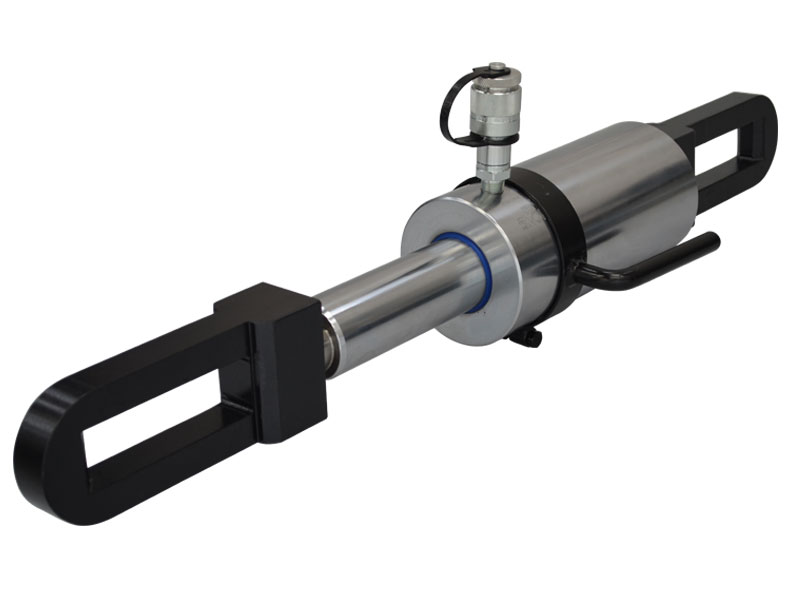

Pull Cylinder - Plain Ram, Single Acting, Spring Return
Pull Cylinder
Pull Cylinder
Hydraulic Capacity: 10 to 30 Ton | 150 mm Stroke | Rated for 700 Bar Pressure
Features / Application :
- Replaces traditional turnbuckle mechanisms for handling heavy loads with improved efficiency and safety
- Equipped with a compression spring that automatically extends the piston rod upon pressure release, enabling faster reset
- Designed for pulling and tensioning tasks in heavy fabrication, industrial maintenance, and steel structural work
- Compatible with standard flange dimensions, offering flexible and reliable operation

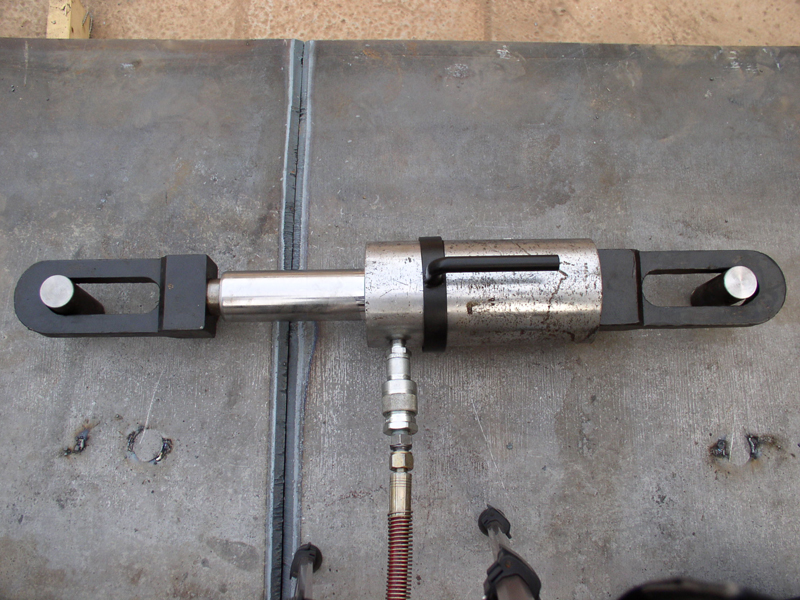

- Highly effective in tensioning applications across construction, steel fabrication, and infrastructure projects
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | Effective area (cm2) |
Oil cap. (cc) |
Extended (mm) |
Closed height (mm) |
Approx Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 10 | 107 | 150 | OSPC 10-150 | 15.3 | 230 | 691 | 541 | 14 |
| 20 | 225 | 150 | OSPC 20-150 | 32.1 | 485 | 770 | 620 | 28 |
| 30 | 332 | 150 | OSPC 30-150 | 47.4 | 715 | 820 | 670 | 48 |
