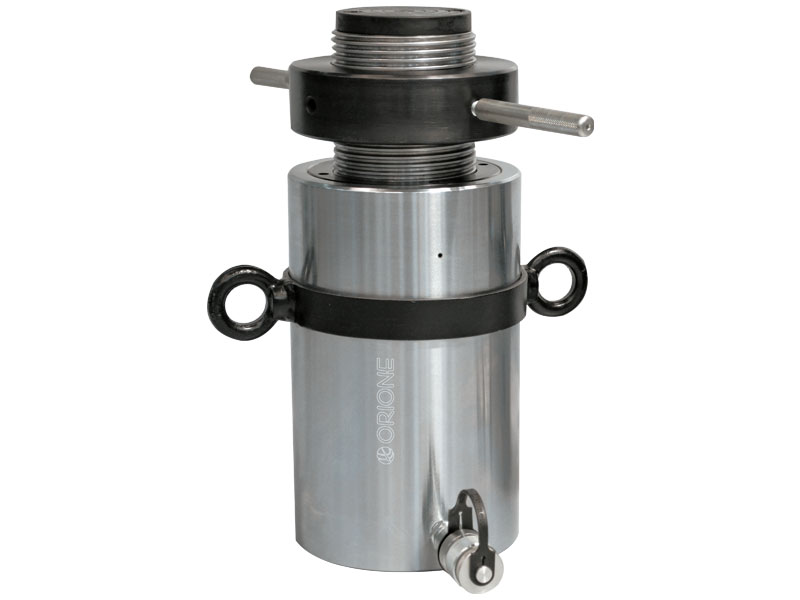

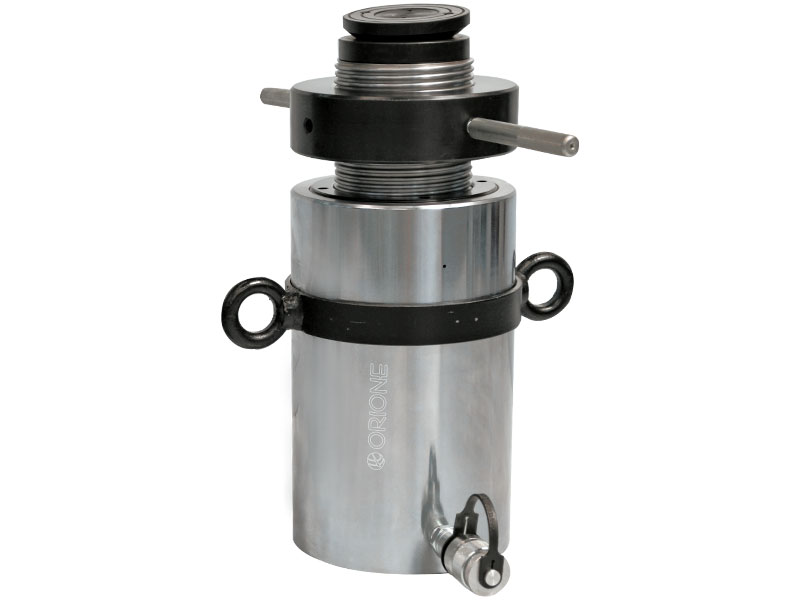

General Purpose Jacks Threaded Ram

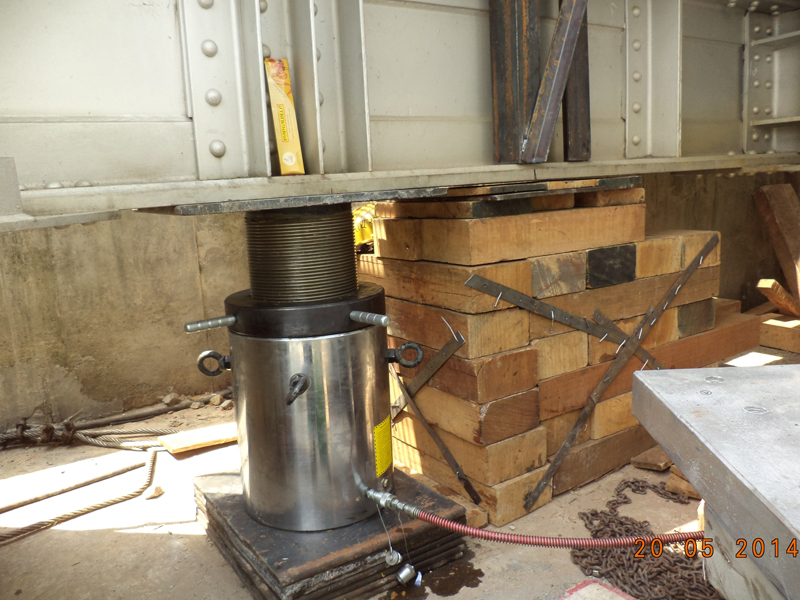

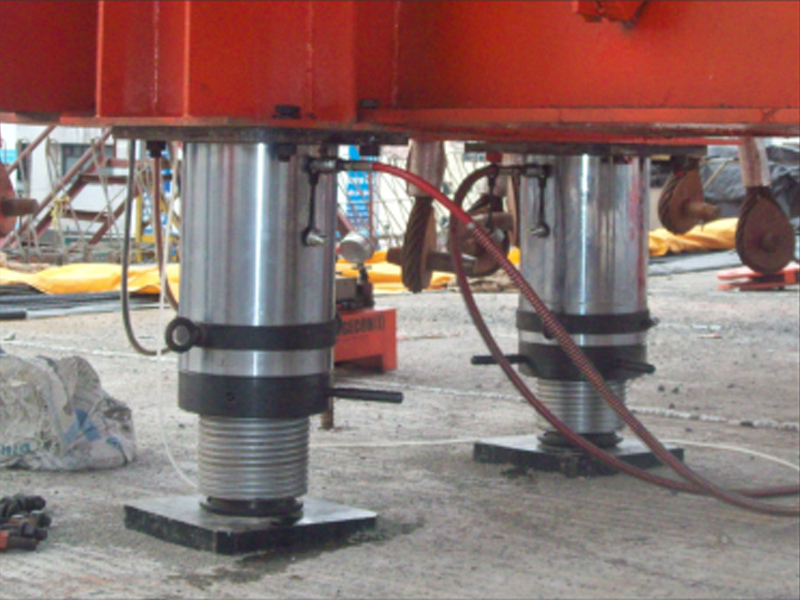

Ideal for applications requiring sustained load holding, including concrete pile testing and bridge support work in the construction industry.
Versatile solution for industrial maintenance tasks across steel, cement, and power plants.

Capacity (ton)	Capacity (kN)	Stroke (mm)	Model	Effective area (cm2)	Oil cap. (cc)	Closed height (mm)	Wt. (Approx.) (kg)
10	111	150	OST 10-150	15.9	239	245	4.50
15	167	150	OST 15-150	23.8	356	250	6.50
20	218	150	OST 20-150	31.2	468	260	9.00
25	270	150	OST 25-150	38.5	577	270	11.30
30	309	150	OST 30-150	44.2	663	275	14.50
50	550	150	OST 50-150	78.5	1178	290	26.50
75	792	150	OST 75-150	113.1	1696	295	37.00
100	1077	150	OST 100-150	153.9	2309	305	56.00
150	1589	150	OST 150-150	227	3405	325	86.00
200	2199	150	OST 200-150	314.2	4712	340	110.00
250	2661	150	OST 250-150	380.1	5702	350	134.00
300	3167	150	OST 300-150	452.4	6786	370	176.00
400	4008	150	OST 400-150	572.6	8588	405	240.00
500	4948	150	-	706.86	10603	-	0.00

Capacity (ton)	Capacity (kN)	Stroke (mm)	Model	Effective area (cm2)	Oil cap. (cc)	Closed height (mm)	Wt. (Approx.) (kg)
10	111	150	OSTS 10-150	15.9	239	255	4.7
15	167	150	OSTS 15-150	23.8	356	265	6.7
20	218	150	OSTS 20-150	31.2	468	275	9.3
25	270	150	OSTS-25-150	38.5	577	285	11.7
30	309	150	OSTS 30-150	44.2	663	290	15
50	550	150	OSTS 50-150	78.5	1178	305	27
75	792	150	OSTS 75-150	113.1	1696	320	38
100	1077	150	OSTS 100-150	153.9	2309	325	57
150	1589	150	OSTS 150-150	227	3405	350	88.5
200	2199	150	OSTS 200-150	314.2	4712	365	114
250	2661	150	OSTS 250-150	380.1	5702	385	139
300	3167	150	OSTS 300-150	452.4	6786	405	183.5
400	4008	150	OSTS 400-150	572.6	8588	445	252
500	4948	150	OSTS 500-150	706.86	10603	465	363

Capacity (ton)	Capacity (kN)	Stroke (mm)	Model	Effective area (cm2)	Oil cap. (cc)	Closed height (mm)	Wt. (Approx.) (kg)
600	5987	150	OLTS 600-150	855.3	12829	495.00	495
800	7939	150	OLTS 800-150	1134.1	17012	535.00	731
1000	9930	150	OLTS 1000-150	1418.6	21279	570.00	970
1500	15154	150	OLTS 1500-150	2164.8	32472	660.00	1810
2000	20458	150	OLTS 2000-150	2922.5	43837	750.00	2705
