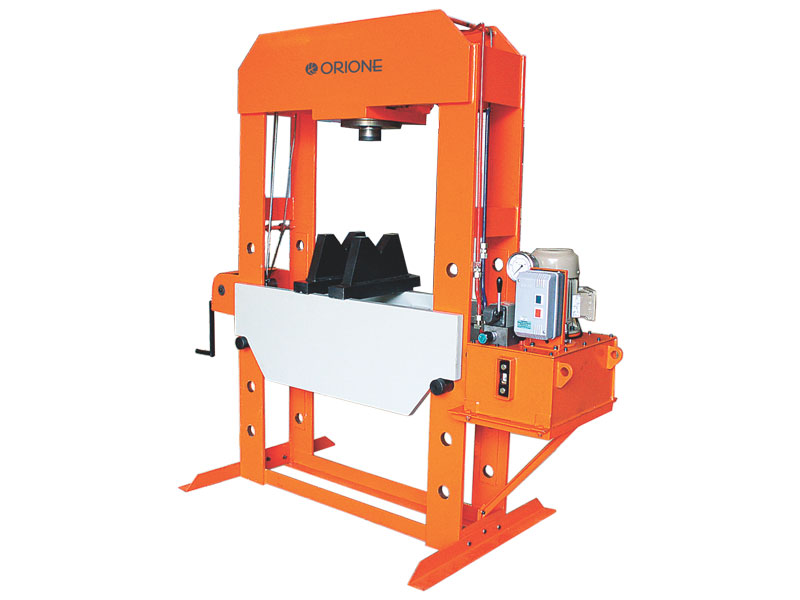

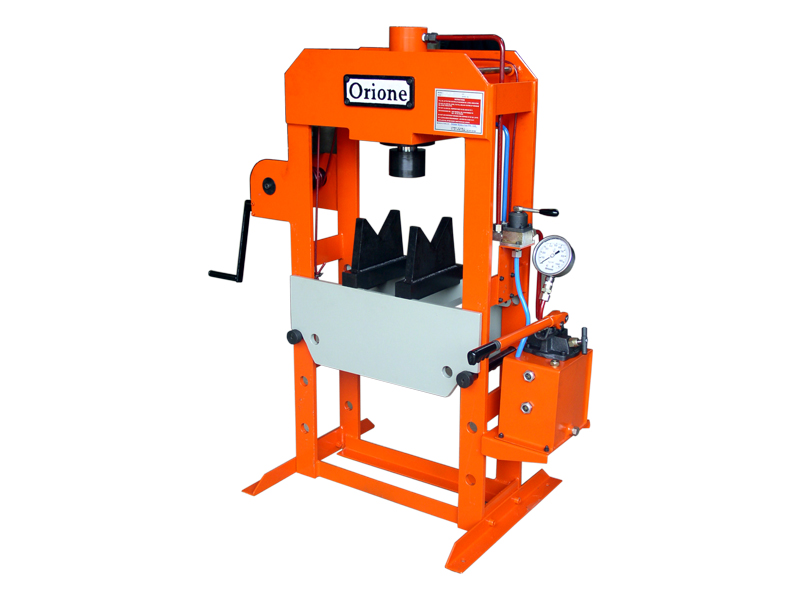

Hydraulic Workshop Presses
Hydraulic Workshop Presses
Hydraulic Press Capacity: 15 to 500 Ton | Max Working Pressure: 700 Bar
Features / Application :
- Ideal for Bearing Removal and Fitment, Sprocket and Gear Installation, Shaft Straightening, and General Maintenance Tasks
- Robust and Aesthetic Construction: Press structures are precisely fabricated using prime-quality steel for enhanced durability and appearance.
- Efficient Table Adjustment: Models of 150 tons and above feature a chain sling mechanism attached to the main cylinder for smooth table positioning.
- Versatile Power Options: Equipped with a two-stage hand pump, with the option to upgrade to a motorized power pack for increased efficiency.
Accessories :
- Calibrated pressure gauge
- Pair of “V” blocks.
- One pushing adaptor.
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | Day Light Min. (mm) |
Day Light Max. (mm) |
Total Height (mm) |
Approx Weight (Kg) |
Pumping Unit (Model) |
|---|---|---|---|---|---|---|---|---|
| 15 | 167 | 150 | OWP 15-150 | 150 | 600 | 1155 | 155 | OHP-2P4-2-5 |
| 30 | 309 | 150 | OWP 30-150 | 150 | 750 | 1445 | 280 | OHP-2P4-2-5 |
| 50 | 550 | 150 | OWP 50-150 | 150 | 900 | 1770 | 425 | OHP-2P4-2-5 |
| 75 | 792 | 200 | OWP 75-200 | 200 | 1000 | 1905 | 580 | OHP-2P4-2-5 |
| 100 | 1077 | 200 | OWP 100-200 | 250 | 1050 | 2080 | 1070 | OPU002031 |
| 150 | 1589 | 300 | OWP 150-300 | 300 | 1050 | 2275 | 1500 | OPU003077 |
| 200 | 2199 | 300 | OWP 200-300 | 300 | 1050 | 2430 | 2350 | OPU003077 |
| 300 | 3167 | 300 | OWP 300-300 | 250 | 1000 | 2525 | 3900 | OPU003077 |
| 500 | 4948 | 300 | OWP 500-300 | 250 | 1000 | 2745 | 4900 | OPU005078 |
