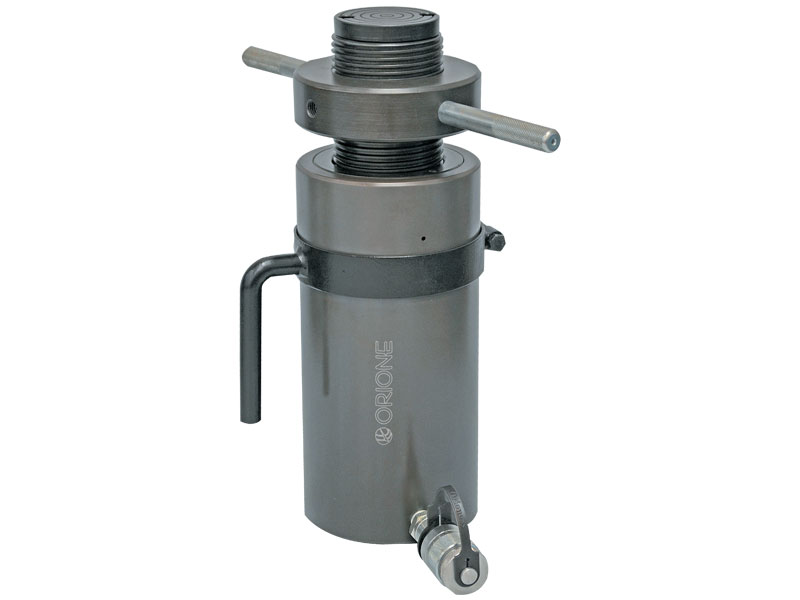

Aluminium General Purpose Jacks - Threaded Ram
Aluminium General Purpose Jacks - Threaded Ram
Load Capacity: 50 to 1000 Tons | Stroke Length: 150 to 250 mm | Maximum Working Pressure: 700 Bar
Application :
- Up to 50% lighter than conventional steel jacks, with a lifespan of 5,000+ duty cycles.
- Suitable for both horizontal and vertical operations.
- Composite guide rings at the piston and gland nut ensure smooth performance in all directions when centrally loaded.
- All sub-assemblies are anodized for enhanced corrosion resistance and durability.
- Optional base mounting holes for flexible installation.
- Perfect for applications requiring sustained load holding.

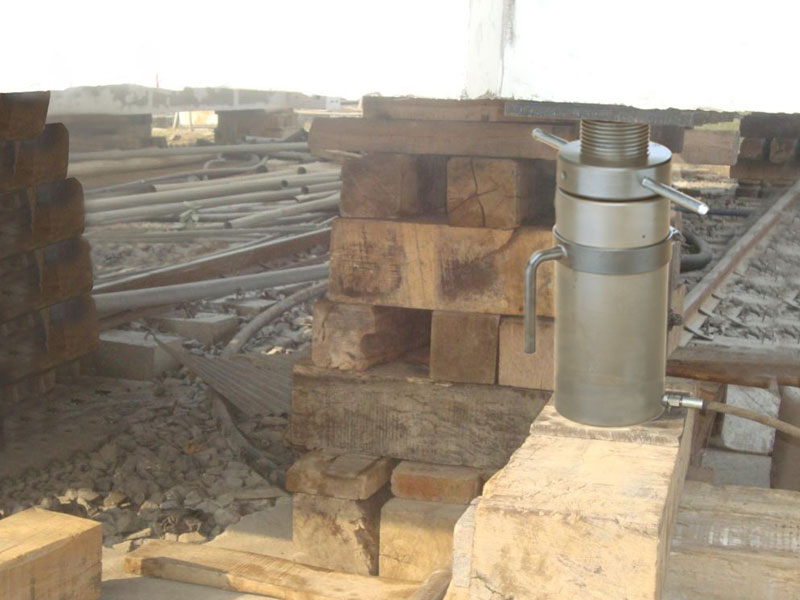

- Ideal for general lifting tasks across industrial settings.
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | Effective area (cm2) |
Oil cap. (cc) |
Closed (mm) |
Wt. (Approx.) (kg) |
|---|---|---|---|---|---|---|---|
| �30 | 309 | 150 | OAST 30-150 | 44.2 | 663 | 305 | 6 |
| �50 | 550 | 150 | OAST 50-150 | 78.5 | 1178 | 325 | 11 |
| 100 | 1077 | 150 | OAST 100-150 | 153.9 | 2309 | 380 | 25 |
| 150 | 1589 | 150 | OAST 150-150 | 227 | 3405 | 405 | 40 |
| 200 | 2199 | 150 | OAST 200-150 | 314.2 | 4713 | 440 | 60 |
