• Flat Design — From Cylinder to Link
• Unique Peanut-Shaped Piston for Compact Power
• Direct-Flow Oil Distribution for Faster Stroke
• Fewer Moving Parts for Greater Reliability
• Accurate Repeatability with Every Use
• Hands-Off Operation for Maximum Safety
Simply... The Flattest Hydraulic Wrench Ever Produced

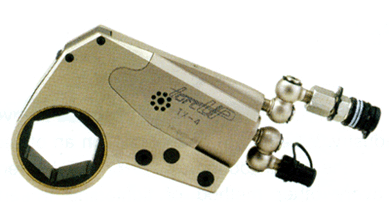

Technical Specification :
Model No.
|
TX-2
|
TX-4
|
TX-8
|
TX-16
|
TX-32
|
Tool Hex from
|
19mm/3/4"
|
25mm/1"
|
50mm/1.7/8"
|
65mm / 2.5/8"
|
80mm/3.1/8"
|
to
|
60mm / 2.3/8"
|
80mm/3.1/8"
|
105mm / 4"
|
115mm/ 4.5/8"
|
155mm/6.1/8"
|
Min. Torque Kg-m (Ft/Lbs)
|
26(192)
|
54 (395)
|
115(830)
|
215(1,560)
|
445 (3,220)
|
Max. Torque Kg-m (Ft/Lbs)
|
260 (1,928)
|
540 (3,950)
|
1192(8,630)
|
2293(16,600)
|
4924 (35,650)
|
Output Accuracy
|
+/- 3%
|
+/- 3%
|
+/- 3%
|
+/- 3%
|
+/- 3%
|
Repeatability
|
100%
|
100%
|
100%
|
100%
|
100%
|
Duty Cycle
|
100%
|
100%
|
100%
|
100%
|
100%
|
Corrosion Protection
|
Standard
|
||||
Cylinder Weight Kgs / (Lbs)
|
1.59 / (3.50)
|
2.73 / (6.00)
|
5.32/(11.70)
|
7.27/(16.00)
|
11.82/(26.00)
|
Link Weight from Kgs / (Lbs)
|
1.09/(2.40)
|
2.45 / (5.40)
|
5.41 / (11.90)
|
9.55/(21.00)
|
13.18/(29.00)
|
to Kgs / (Lbs)
|
1.59 / (3.50)
|
3.45 / (7.60)
|
6.59/(14.50)
|
12.73/(28.00)
|
17.95/(39.50)
|

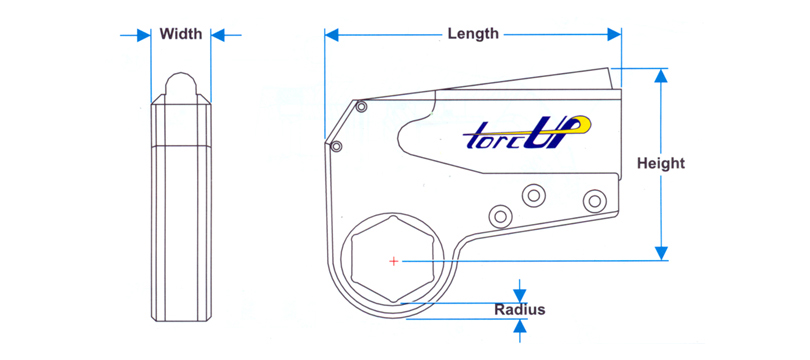

Dimensions :
| Model No. | TX-2 | TX-4 | TX-8 | TX-16 | TX32 | |||||
mm
|
inch
|
mm
|
inch
|
mm
|
inch
|
mm
|
inch
|
mm
|
inch
|
|
Length
|
144.00
|
5.67
|
198.12
|
7.80
|
248.92
|
9.80
|
328.42
|
12.93
|
388.62
|
15.30
|
Height
|
101.60
|
4.00
|
142.24
|
5.60
|
177.80
|
7.00
|
192.53
|
7.58
|
276.86
|
10.90
|
Width 1
|
31.75
|
1.25
|
41.40
|
1.63
|
52.07 | 2.05 | 63.50 | 2.50 | 82.30 | 3.24 |
| Radius | 9.14 | 0.36 | 11.68 | 0.46 | 13.72 | 0.54 | 16.51 | 0.65 | 23.62 | 0.93 |
Note : All tool weights include Couplers, Swivels, Reaction Arm and Internal Oil.
The Patented Mono-Body Housing is standard on all models.

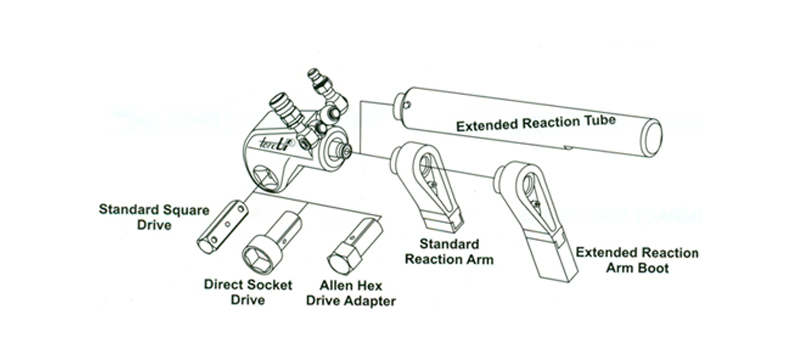

TU Accessories :
