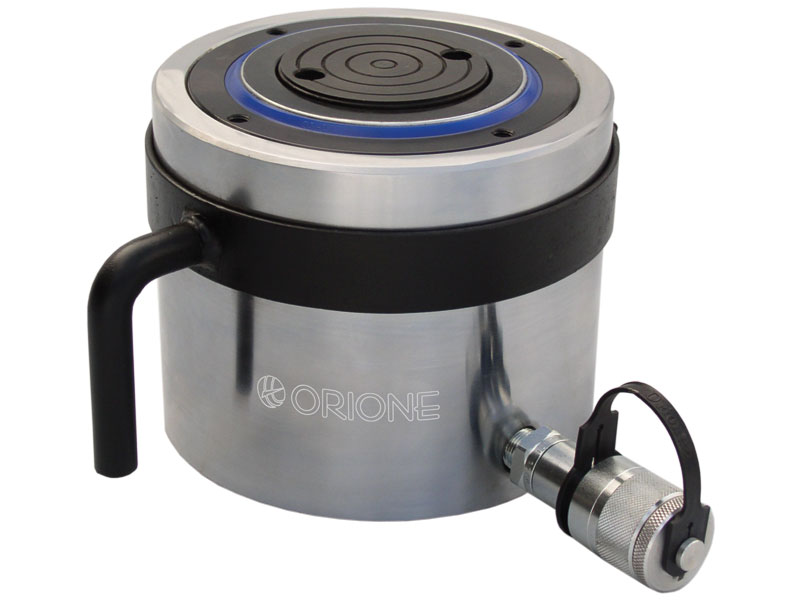

Low Height Jacks Single Acting
Low Height Jacks Single Acting
Hydraulic Capacity: 10-200 Tons | Stroke Range: 30-60 mm | Maximum Working Pressure: 700 Bar

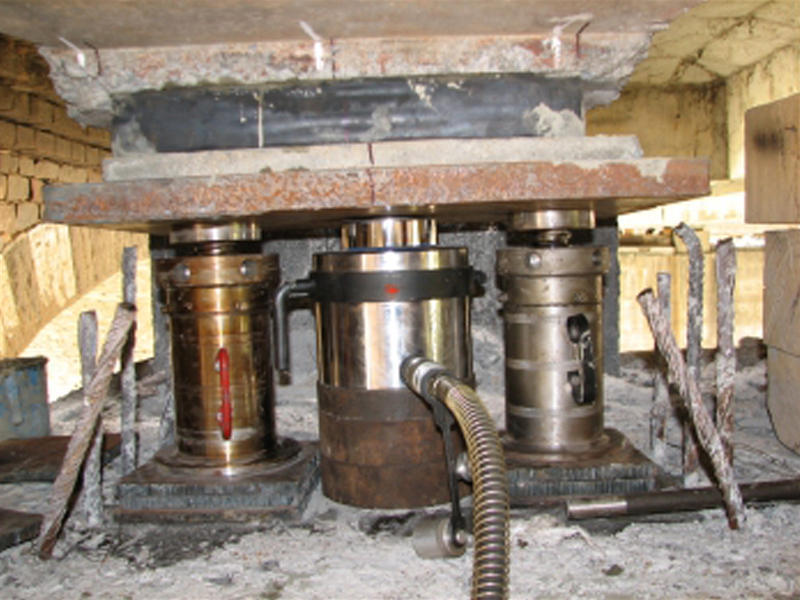

Application :
- Ideal for Low-Clearance Applications
- Perfect for Heavy Equipment Lifting, Positioning, and Alignment
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | Effective area (cm2) |
Oil cap. (cc) |
Closed height (mm) |
Wt. (Approx.) (kg) |
|---|---|---|---|---|---|---|---|
| 10 | 111 | 30 | OSL 10-30 | 15.9 | 48 | 90 | 2.3 |
| 20 | 218 | 50 | OSL 20-50 | 31.2 | 160 | 115 | 4.9 |
| 30 | 309 | 50 | OSL 30-50 | 44.2 | 221 | 120 | 6 |
| 50 | 550 | 60 | OSL 50-60 | 78.5 | 471 | 125 | 11 |
| 75 | 792 | 60 | OSL 75-60 | 113.1 | 679 | 145 | 18.4 |
| 100 | 1077 | 60 | OSL 100-60 | 153.9 | 925 | 150 | 23.6 |
| 150 | 1589 | 60 | OSL 150-60 | 227 | 1362 | 165 | 43 |
| 200 | 2199 | 60 | OSL 200-60 | 314.2 | 1885 | 200 | 66 |
