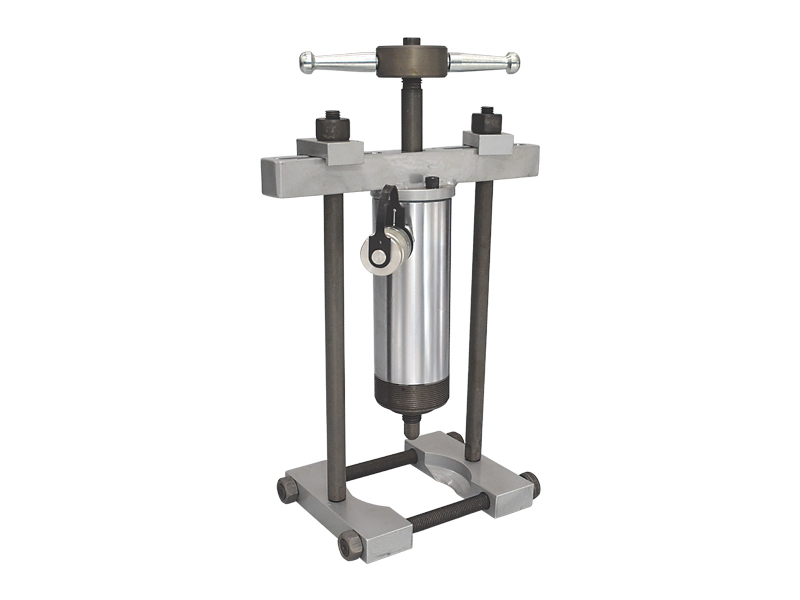

Push Puller
Push Puller
Push Puller
Load Capacity: Capacity 10 - 50 ton
Features / Application :
- High strength tie rods.
- Maintenance of workshop equipment. Removal of wheels, pulleys, gears, sleeves and other press fit assemblies.
| Model | Capacity (ton) |
Capacity (kN) |
Cylinder Model |
Stroke (mm) |

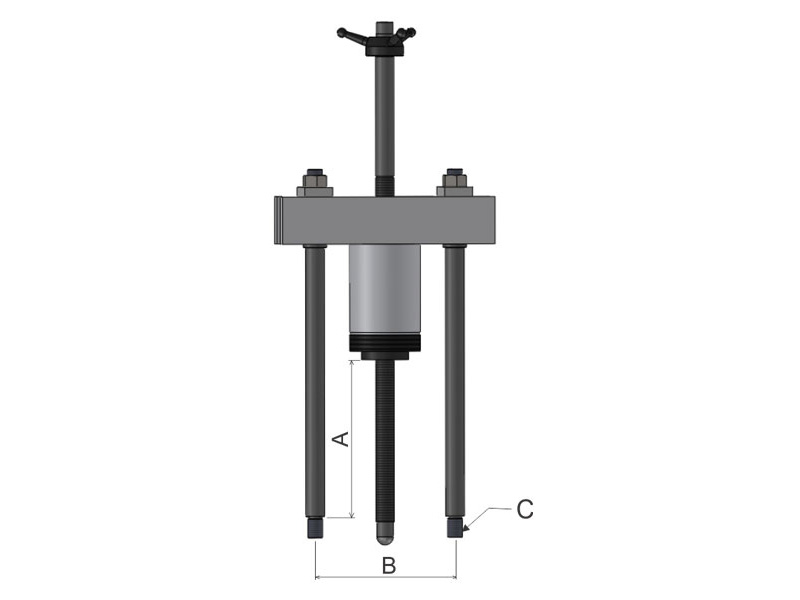

Reach Short A (mm) |
Reach Medium A (mm) |
Reach Long A (mm) |
Spread Min B (mm). |
Spread Max B (mm) |
End Threads C (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| OPA 10 HPP | 10 | 110 | OSH 10-100 | 100 | - | 120 | 220 | 105 | 260 | M16x2P |
| OPA 20 HPP | 20 | 231 | OSH 20-100 | 100 | 70 | 240 | 360 | 150 | 320 | M16x2P |
| OPA 30 HPP | 30 | 298 | OSH 30-100 | 100 | - | 230 | 485 | 160 | 410 | M24x1.5P |
| OPA 50 HPP | 50 | 550 | OSH 50-100 | 100 | - | 335 | 585 | 190 | 410 | M32x2P |
