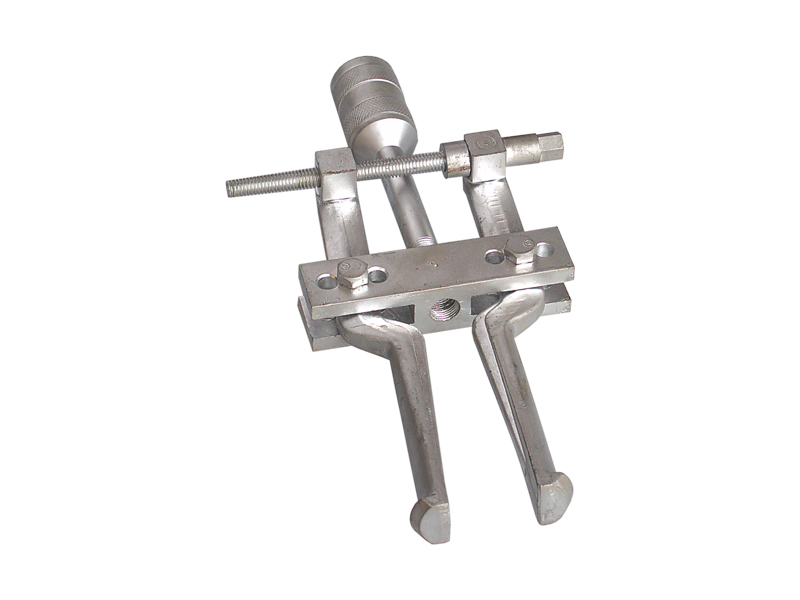

Internal Puller
Internal Puller
Internal Puller
Internal Puller
Load Capacity: Capacity 10 - 30 ton
Features / Application :
- Adjustable gap with turn buckle mechanism.
- High strength forged steel construction.
- Maintenance of workshop equipment. Finds special use in removal of bearing outer races, bushes, press fitted in housing.

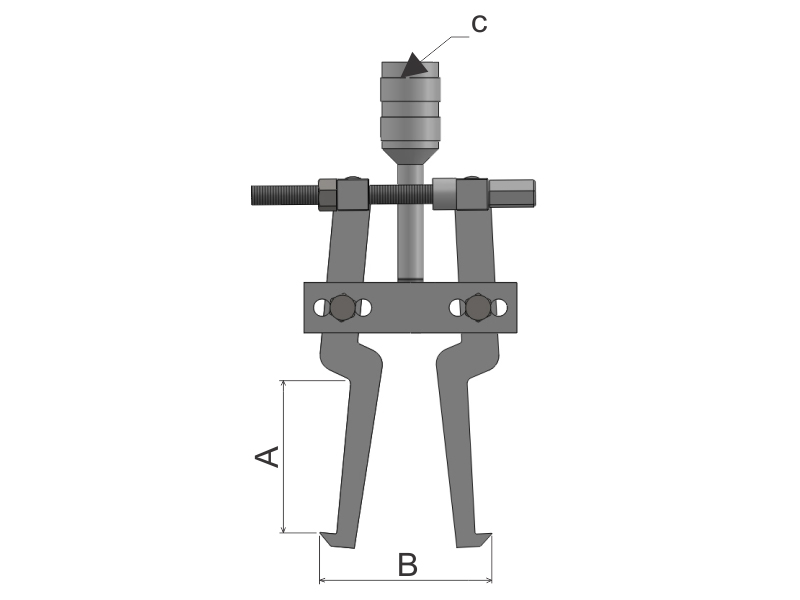

| Model | Capacity (ton) |
Capacity (kN) |
A Min (mm) |
A Max (mm) |
B (mm) |
Tap C (mm) |
|---|---|---|---|---|---|---|
| OPA 10 HIP | 10 | 110 | 100 | 50 | 150 | M20x2.5P |
| OPA 20 HIP | 20 | 231 | 100 | 50 | 150 | M27x3P |
| OPA 30 HIP | 30 | 298 | 105 | 75 | 225 | M33x3P |
